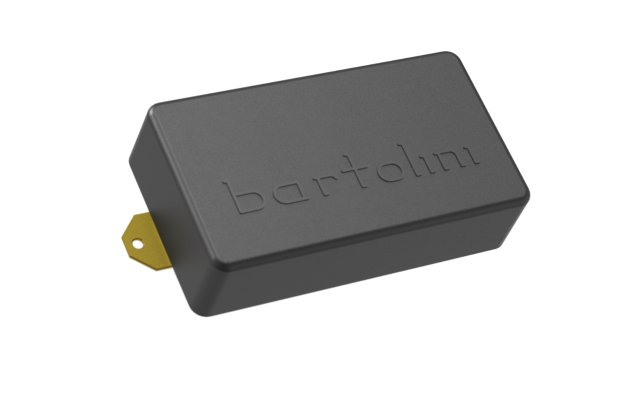

Bartolini Deep Bright Guitar Humbucker (1D-01-BK), Bridge, Black

Designed in the Grunge era, the 1D-01 is a thick and dirty humbucker. It has very good mid frequency response and wide sensing aperture for a big voice. As a pro-level pickup, it is fully sealed to be sweat-proof and alcohol-proof. The 1D-01 can be used in the neck or bridge position. In the neck position, it pairs nicely with a V94D at the bridge. In the bridge position, it pairs nicely with the V88C at the neck. The shielded 4-conductor cable is ready for coil splitting and series or parallel humbucker wiring.

• Deep Bright humbucker pickup for electric guitar
• 6-string version
• thick sound with good clarity and definition
• great for Rock, Blues und Grunge
• bridge position
• dual parallel humbucking
• magnetic circuit: carbon steel, brass, asymmetric ceramic blade magnets (ferrite), asymmetric field, opposite coil polarity
• DC resistance 3.5 kOhm each coil
• resonant frequency 3.5 kHz

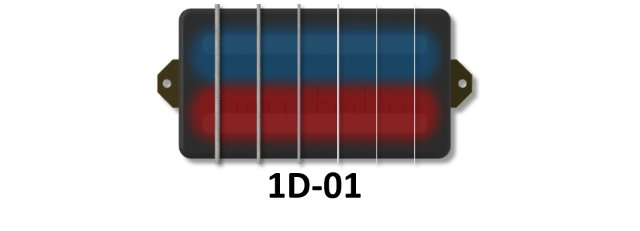

• 51 mm / 2.01" max. sensing width
• 4-conductor shielded cable with bare drain wire
• passive
• black cover
• brass bracket with tapped holes

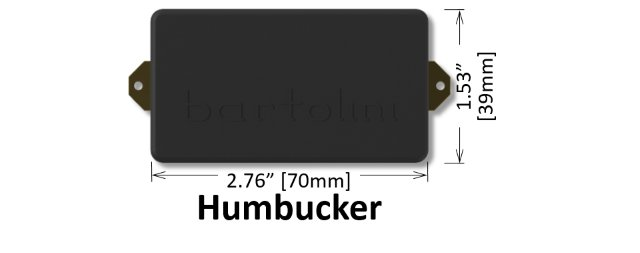

• dimensions (L x W x H) 70.1 x 38.9 x 23.4 mm / 2.76" x 1.53" x 0.92" (height incl. cable)
• screws and springs are not included
• Due to the manufacturing process, the plastic housings of Bartolini pickups may show minor processing or handling marks. The cable ends of some pickups may also be pre-soldered. These characteristics do not constitute grounds for complaint or reason for return.
• Note: The return and refund policy does not apply to pickups, if their cables have been cut or other damage affecting the condition of the goods is present.

Note: Replacement pickups may differ slightly in shape and dimensions from the original pickups. Adjustments may be necessary. It is recommended that you check the schematic drawings carefully. Deviations in the size and shape of the pickups do not constitute grounds for complaint.
