Bartolini Jazz Guitar Humbucker (5J), With Bracket, Black

Product nr.: BA 5 J

0,20 kg
Johnny Smith worked closely with Gibson to design full-bodied arch-top guitars, and we pay homage... more

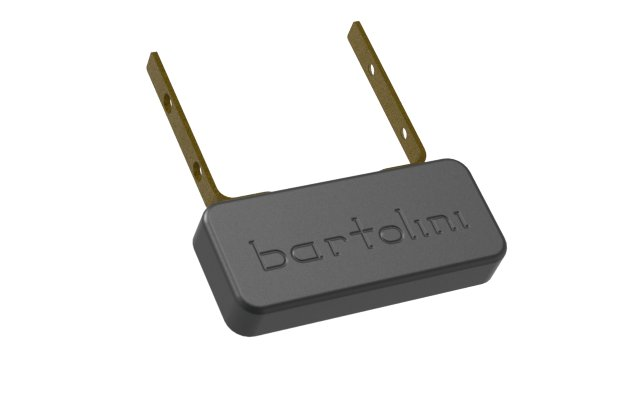

Bartolini Jazz Guitar Humbucker (5J), With Bracket, Black
Johnny Smith worked closely with Gibson to design full-bodied arch-top guitars, and we pay homage to that classic Jazz guitar sound with our own jazz pickup. The dual coil Johnny Smith (JS) humbucker gets a smooth, clear distinctive tone available with or without adjustable brackets for mounting to the end of your fretboard.

  • Jazz guitar humbucker pickup for electric guitar
  • 6-string version
  • high fidelity, clarity, definition and articulation
  • classic Jazz guitar sound
  • mounted at the end of the fretboard
  • with adjustable mounting bracket
  • dual parallel humbucking
  • magnetic circuit: carbon steel, brass, ceramic blade magnets (ferrite), wide but focused field, opposite coil polarity
  • DC resistance 3.6 kOhm each coil
  • resonant frequency 6.1 kHz

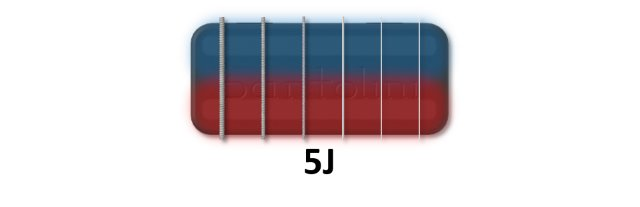

  • 50 mm / 1.97" max. sensing width
  • 2-conductor, shielded coaxial cable, core hot
  • passive
  • black cover

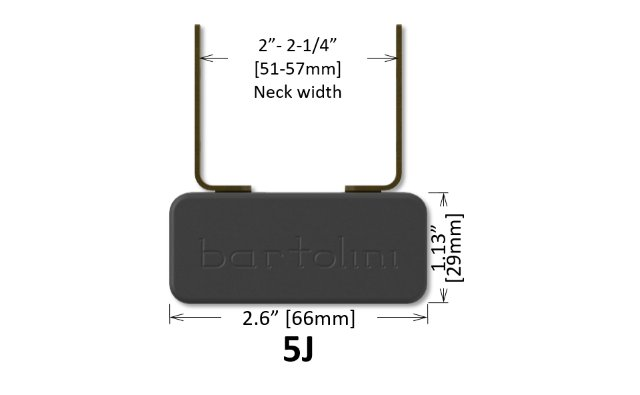

  • dimensions (L x W x H) 66.0 x 28.7 x 13.7 mm / 2.6" x 1.13" x 0.54" (height incl. cable)
  • screws and springs are not included
  • Due to the manufacturing process, the plastic housings of Bartolini pickups may show minor processing or handling marks. The cable ends of some pickups may also be pre-soldered. These characteristics do not constitute grounds for complaint or reason for return.
  • Note: The return and refund policy does not apply to pickups, if their cables have been cut or other damage affecting the condition of the goods is present.


Note: Replacement pickups may differ slightly in shape and dimensions from the original pickups. Adjustments may be necessary. It is recommended that you check the schematic drawings carefully. Deviations in the size and shape of the pickups do not constitute grounds for complaint.









Read, write and discuss reviews... more
Writing reviews is only possible for logged in users.
Log in now
Manufacturer
Bartolini, Inc.
Suburban Rd., Ste B2 141
93401
San Luis Obispo,
Vereinigte Staaten
Support@Bartolini.net
https://bartolini.net/

Importer
Warwick GmbH & Co Music Equipment KG
Gewerbepark 46
08258
Markneukirchen
Deutschland
https://www.warwick.de
info@warwick.de

General safety instructions
- Only use the pickup for its intended purpose.
- Keep the cartridge away from extreme temperatures and moisture.
- Avoid contact of the cartridge with water or other liquids.
- Keep the cartridge out of the reach of children.
- Do not use the cartridge if it is visibly damaged.
- Dispose of the cartridge in accordance with local regulations for electronic waste.

Special notes on installation dimensions
Replacement pickups may differ slightly in shape and dimensions from the original pickups. Adjustments may be necessary. It is recommended to check the schematic drawings carefully. Deviations in the size and shape of the pickups do not constitute grounds for complaint.
