Bartolini 6-String Original Splits M4 Soapbar (XXM46M-B), Neck, Black

Voiced very similar to our Original Dual Coil bass pickups, our Split-coil Reverse P design provides extended reach and a wider sensing area, allowing for a narrower pickup to work with wider-spaced strings. Original Split pickups preserve the full-bodied low end of our Original series and adding even more articulation, a simple setup, and high value. Original Splits provide you with deep lows and low-mids along with nice treble complexity for manageable growl. The coils are fully shielded and sealed so they are sweat-proof and immune from invisible noise stage and studio equipment. The cables are shielded too. Available in balanced versions for neck and bridge. The bridge pickup has a higher output than the neck pickup, so it is great for cutting through the mix when needed.

• Original Splits M4 Soapbar pickup for electric bass
• 6-string version
• focused full original voice
• suitable for narrow string spacing
• neck position
• split coils in reverse P configuration, hum-killing
• magnetic circuit: carbon steel, brass, ceramic blade magnets (ferrite), wide aperture, opposite coil polarity
• DC resistance 7.6 kOhm
• resonant frequency 5.7 kHz
• 72 - 88 mm / 2.83" - 3.46" sensing width
• 2-conductor shielded coaxial cable, hot core
• passive
• black cover

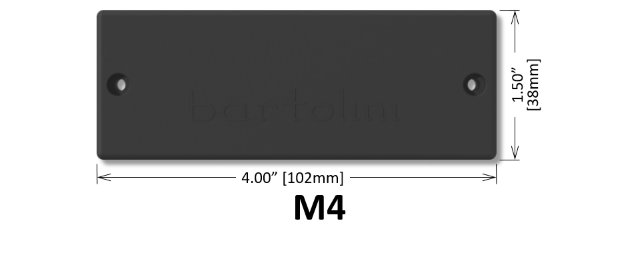

• dimensions (L x W x H) 101.6 x 38.1 x 23.6 mm / 4.0" x 1.5" x 0.93" (height incl. cable)
• screws and springs are not included
• Due to the manufacturing process, the plastic housings of Bartolini pickups may show minor processing or handling marks. The cable ends of some pickups may also be pre-soldered. These characteristics do not constitute grounds for complaint or reason for return.
• Note: The return and refund policy does not apply to pickups if their cables have been cut or other damage affecting the condition of the goods is present.

Note: Replacement pickups may differ slightly in shape and dimensions from the original pickups. Adjustments may be necessary. It is recommended that you check the schematic drawings carefully. Deviations in the size and shape of the pickups do not constitute grounds for complaint.
