This is a modern design dual coil humbucking pickup. Pickups like these are usually found on very... more

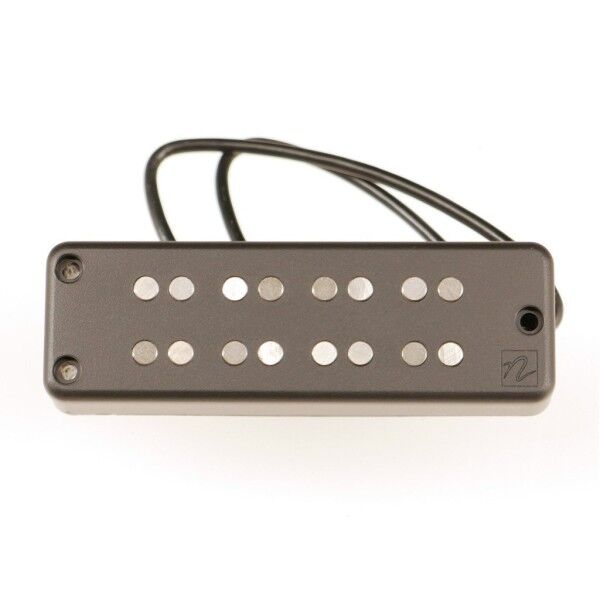

Nordstrand Dual Coil 4, Soapbar Humbucker Parallel Wiring - 4 Strings, Bridge
This is a modern design dual coil humbucking pickup. Pickups like these are usually found on very high end basses. They use Alnico V magnets and the traditional bi-pole layout with two poles per string. It's almost like two Jazz Bass® style pickups in one cover. These pickups are available in two different versions. One set is designed to be wired in parallel, and the other in series. The reason we do this is that a pickup that is made to sound good wired parallel will usually be too hot and dark sounding if wires in series. So, we put less wire on a series dual coil than a parallel dual coil. In general, a pickup wired in series will have a fuller and fatter midrange with a subdued high end than a pickup wired in parallel, which will typically have more highs and a deeper low end with a cleaner midrange. Series pickups also have more output than parallel pickups. Parallel pickups are generally a better choice for a split-able installation, as there will not be the gain loss associated with series pickups. These pickups are available only in black plastic covers with exposed pole pieces. These pickups will fit as replacements for Bartolini™ P2 (5 string) and BC (4 string) pickups. Dimensions are 4.25" by 1.25" and 3.95" by 1.25" respectively. Standard spacing is 19mm ctc at the bridge.
- -Pickup for 4-string E-basses
- -Bridge position
- -Alnico V
- -Optimized for parallel operation
- -Color: Black
- -Dimensions (W x H): 10 x 3.2 cm
- -String spacing: 19 mm at the bridge (ctc)
- Note: The return and refund policy does not apply to pickups, if their cables have been cut or soldered, or other damage affecting the condition of the goods is present.
