Bartolini NTBT 2-Band Preamp (HR-3.3AP/918), 3 Pots, with Bypass

Product nr.: BA HR 3/3 AP

0,20 kg
The NTBT is a 2-band tone control preamp with fully independent Bass and Treble controls. The... more
Bartolini NTBT 2-Band Preamp (HR-3.3AP/918), 3 Pots, with Bypass

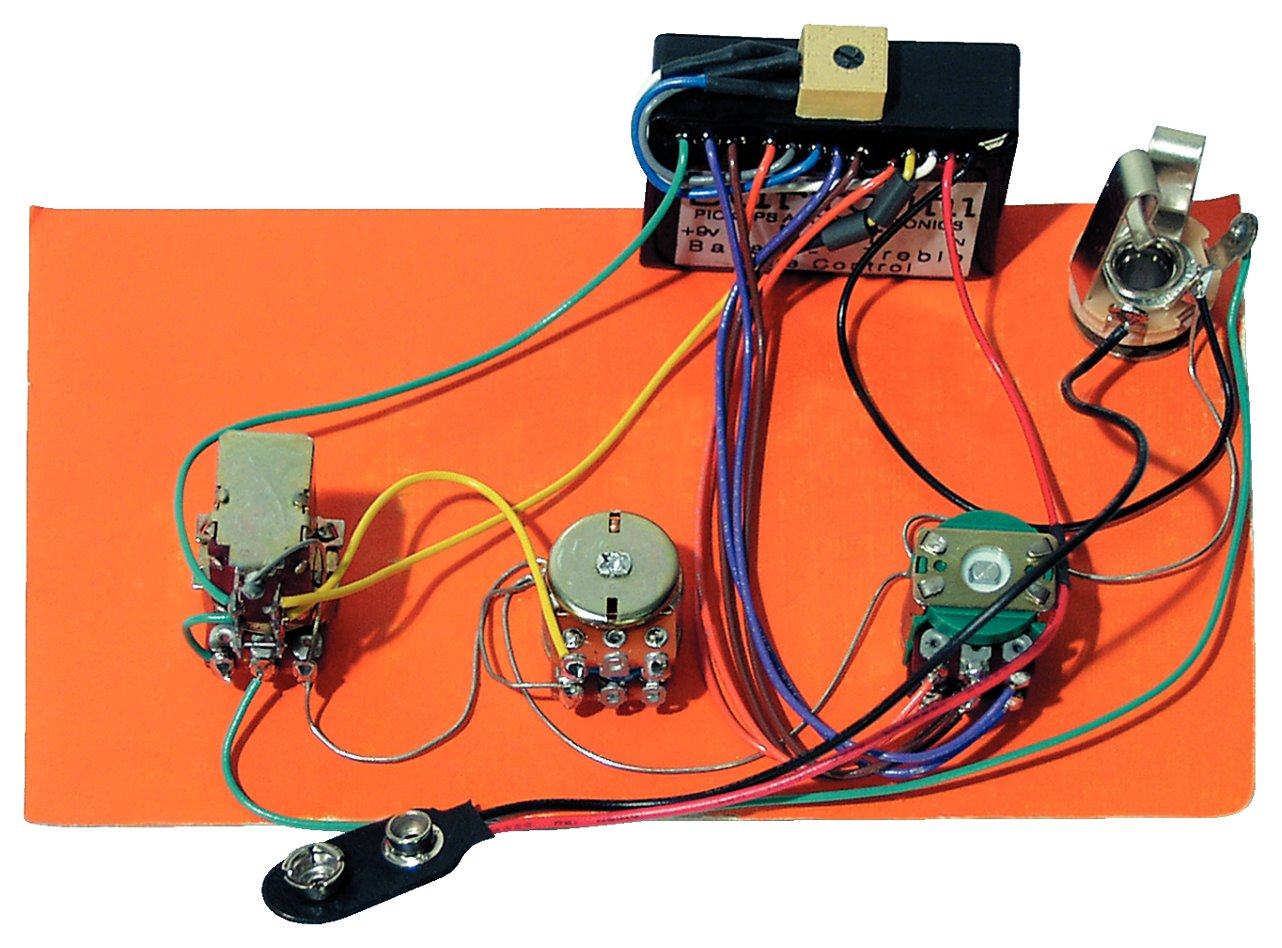

The NTBT is a 2-band tone control preamp with fully independent Bass and Treble controls. The voice is clear, transparent, and strong with wide boost and cut range for aggressive control. The NTBT features an adjustable gain which allows you to boost the input signal up to 12dB while maintaining flat frequency response. A professionally pre-wired and fully pre-tested harness saves the time and aggravation of wiring your preamp and pots into your instrument. Wired with our pro-level preamp and premium audio-quality pots and switches, you’ll have smooth control and be ready for years of rugged use. We include battery clips and an output jack for quick installation. All the pots are grounded with a wire that can be connected to the cavity shield or simply cut away if not needed in your installation. Everything is pre-soldered with pro-quality pure copper wire that is double tin plated and protected with semi-rigid insulation so it won’t flop around in the cavity or degrade over time. We use only professional lead-free solder with non-corrosive flux. Knobs are a personal choice, so they are not included with the harness – except where there is a stacked (concentric) pot, we include a ring knob and center knob since they are not as common.

  • pre-wired 2-band preamp kit for electric bass with 3 pots and bypass switch
  • clear transparent sound with very low distortion

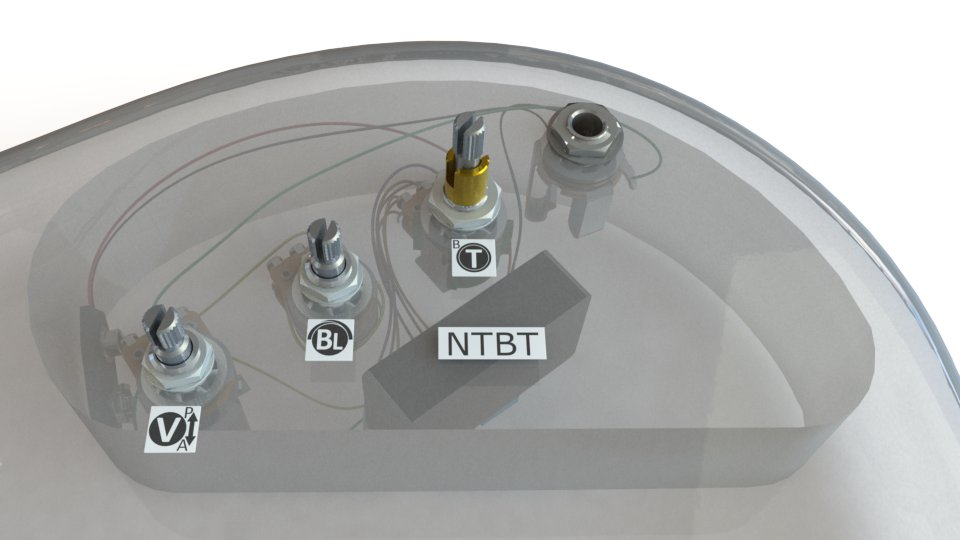

  • configuration: NTBT-918, 1 x volume pot (p/p), 1 x blend pot, 1 x treble/bass pot (stacked)
  • active/passive (bypass) switching with push/pull volume pot
  • adjustable gain up to 12 dB
  • pre-wired for 9V operation (including output jack and battery clip)
  • supports 18V operation for 6 dB extra headroom (second battery clip included)
  • power supply via 1 x 9V / 2 x 9V (18V) battery (not included)
  • module dimensions (L x W x H) 44.7 x 25.9 x 13.7 mm / 1.76" x 1.02" x 0.54"
  • incl. ring and center knob for stacked poti
  • Note: The right and refund policy does not apply to electronic components if their cables have been cut or soldered, if they show signs of use, if they have already been installed or other damage affecting the condition of the goods is present.
