XTCT is a variant of the legendary TCT on-board preamp. It has Bass, Mid, and Treble controls... more

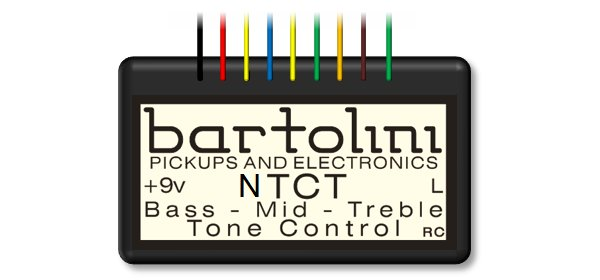

Bartolini NTCT Vintage 3-Band EQ Preamp Module (NTCT)
NTCT is a variant of the legendary TCT on-board preamp. It has Bass, Mid, and Treble controls with very low noise and wide adjustment range. Like the TCT, the NTCT has vintage FMV (Fender™/Marshall™/Vox™) frequency controls so each band affects the others and if all bands are set to minimum, the output is muted. This active tone control has the same tonal response as the early Fender™ amplifiers with Treble-Bass-Presence controls. The Bass and Treble controls give about 12dB boost or cut at 50Hz and 6KHz, respectively. The Mid control can cut up to 16dB at 400Hz, instead of 300Hz like the original Fender™ Presence control. An MCT mid boost module can be added for boost of the mid for full 3-band control. The NTCT includes a boost signal that can be used by professional guitar technicians to further increase the output gain or shape the frequency response. Because they rely on electrical current feedback for amplification, the tone is very well suited for high-output guitar setups. The NTCT delivers very satisfying frequency-phase shift and asymmetric tube-like distortion when overdriven. Like all of our preamps, the NTCT is internally shielded to reject electromagnetic noise and includes internal filters to block AM and FM radio on the input. Bartolini set the standard of fully sealing the sensitive electronics. We use professional double tin plated pure copper wire with durable semi-rigid insulation. This ensures the 5" pre-stripped wires don’t flop around in the cavity and the wires don’t cut through the insulation over time. The TCT Family is a vintage, complex design with a limited yet loyal following. Most musicians prefer the ease and flexibility of our more recent products.
- 3-band EQ preamp
- evolution of the original TCT Bartolini on-board preamp
- very low noise
- wide adjustment range for tone control
- bass, mids and treble control
- up to -16 dB @ 400 Hz mid frequency notch with mids control
- input impedance 400 kOhm
- power supply via 1 x 9V battery (not included)
- dimensions (L x W x H) 44.7 x 25.9 x 13.7 mm / 1.76" x 1.02" x 0.54"
- Note: The right and refund policy does not apply to electronic components if their cables have been cut or soldered, if they show signs of use, if they have already been installed or other damage affecting the condition of the goods is present.
