JHS Pedals 3 Series Delay

Product nr.: JHS 3S DELAY

0,50 kg
The JHS Pedals 3 Series Delay lets you choose between rich and warm or clear and pristine echoes.... more
JHS Pedals 3 Series Delay

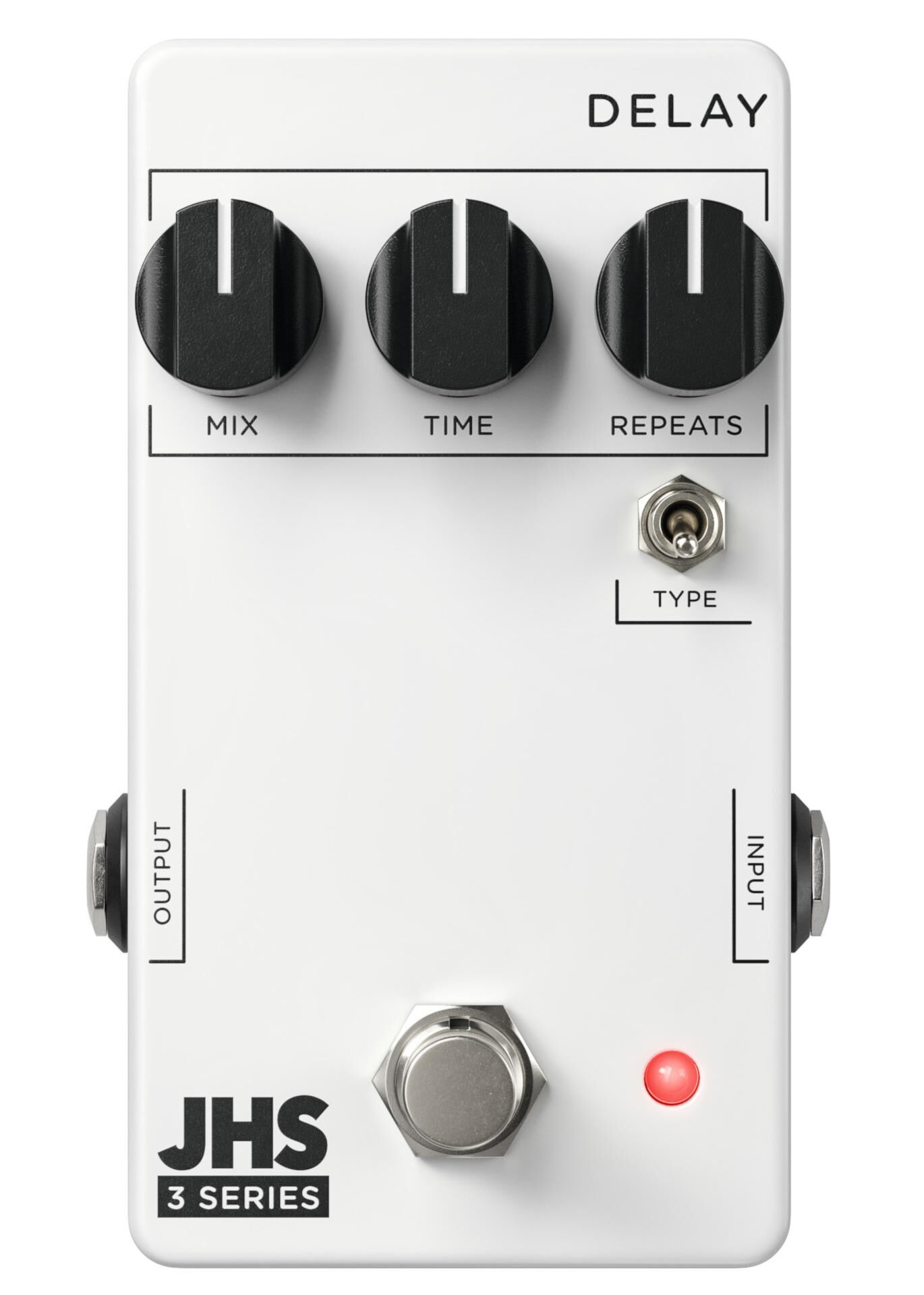

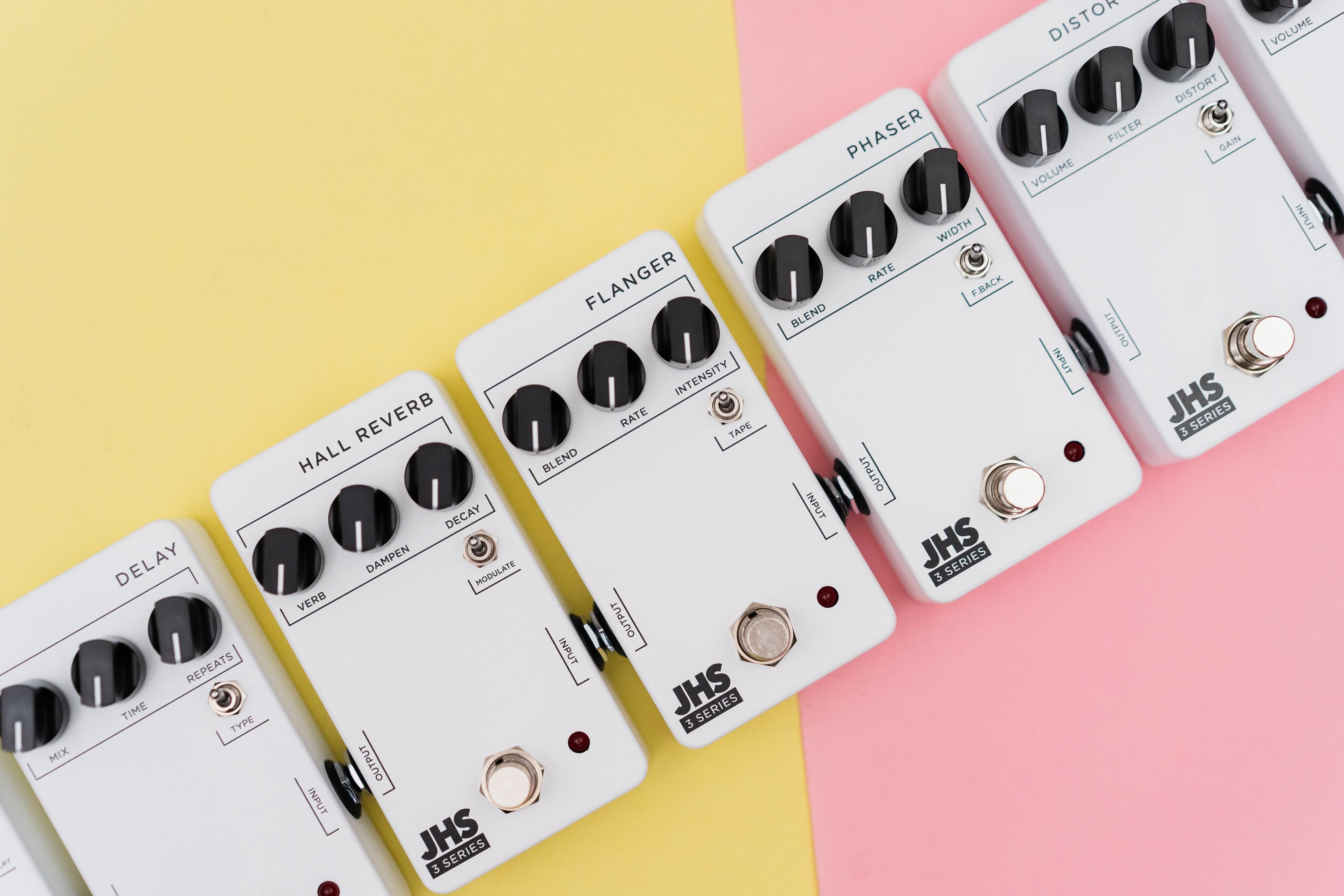

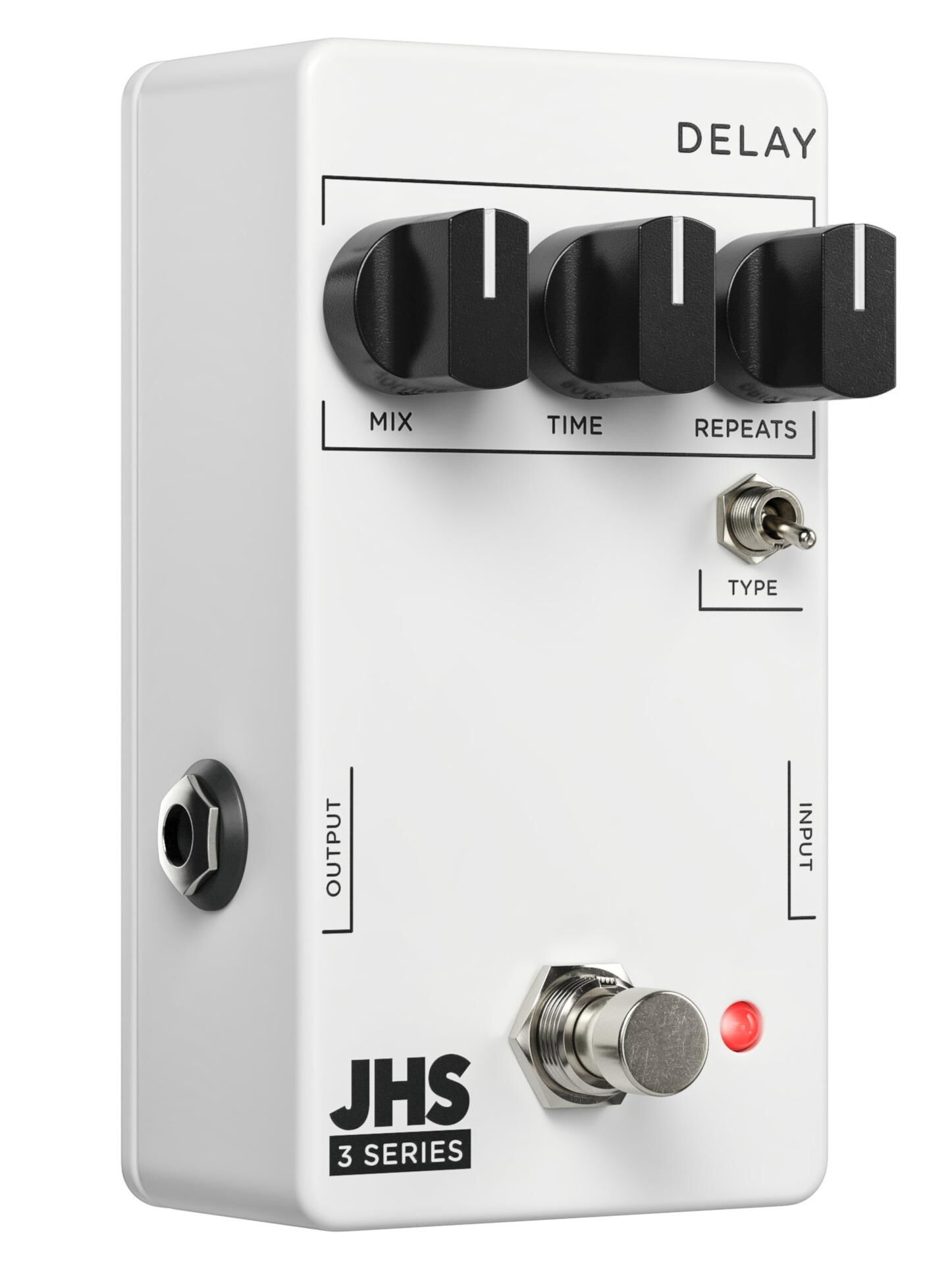

The JHS Pedals 3 Series Delay lets you choose between rich and warm or clear and pristine echoes. The straightforward design is simple and easy to use while offering a huge range of options. The Delay gives you 80 ms to 800 ms of delay time, for everything from slapback to long ambient washes of pad-like echo. The Type toggle allows you to select between a clearer digital-voiced delay and darker analog-voiced delay. The Delay will give you classic bucket brigade runaway when you max out the Repeats knob when in the analog-voiced delay mode. Each 3 Series pedal is made by JHS Pedals in Kansas City, MO, using high-quality parts, quality control, and attention to every detail. Each pedal has three simple controls and one toggle that offer a wide range of sounds, perfect for beginners and professionals alike. The JHS Pedals 3 Series will inspire your playing and help you explore new sounds at a totally approachable price point.

  • delay effects pedal from the JHS Pedals 3 Series
  • intuitive controls offer a wide range of possible sounds
  • adjustable delay time of 80 ms to 800 ms
  • ranges from slapback to long ambient washes
  • Type toggle selects between two voicing modes (digital-voiced / analog-voiced)
  • true bypass
  • controls for Mix, Time, Repeats
  • Type toggle switch
  • bypass footswitch
  • status LED
  • metal housing
  • 6.3 mm mono in / output jacks
  • power supply via optional 9V DC adapter 2.1 mm x 5.5 mm barrel plug, polarity (-) center
  • battery operation not supported
  • current draw 71 mA
  • dimensions (L x W x H) 112 x 60 x 31 mm / 4.42" x 2.38" x 1.22"
  • weight ca. 210 g / 0.46 lbs
