XVive V21 Echoman - Analog Delay

Product nr.: XV V21 ECHOMAN

0,30 kg
The XVive V21 Echoman, designed by guitar effects guru Howard Davis, is a simplified monaural... more
XVive V21 Echoman - Analog Delay

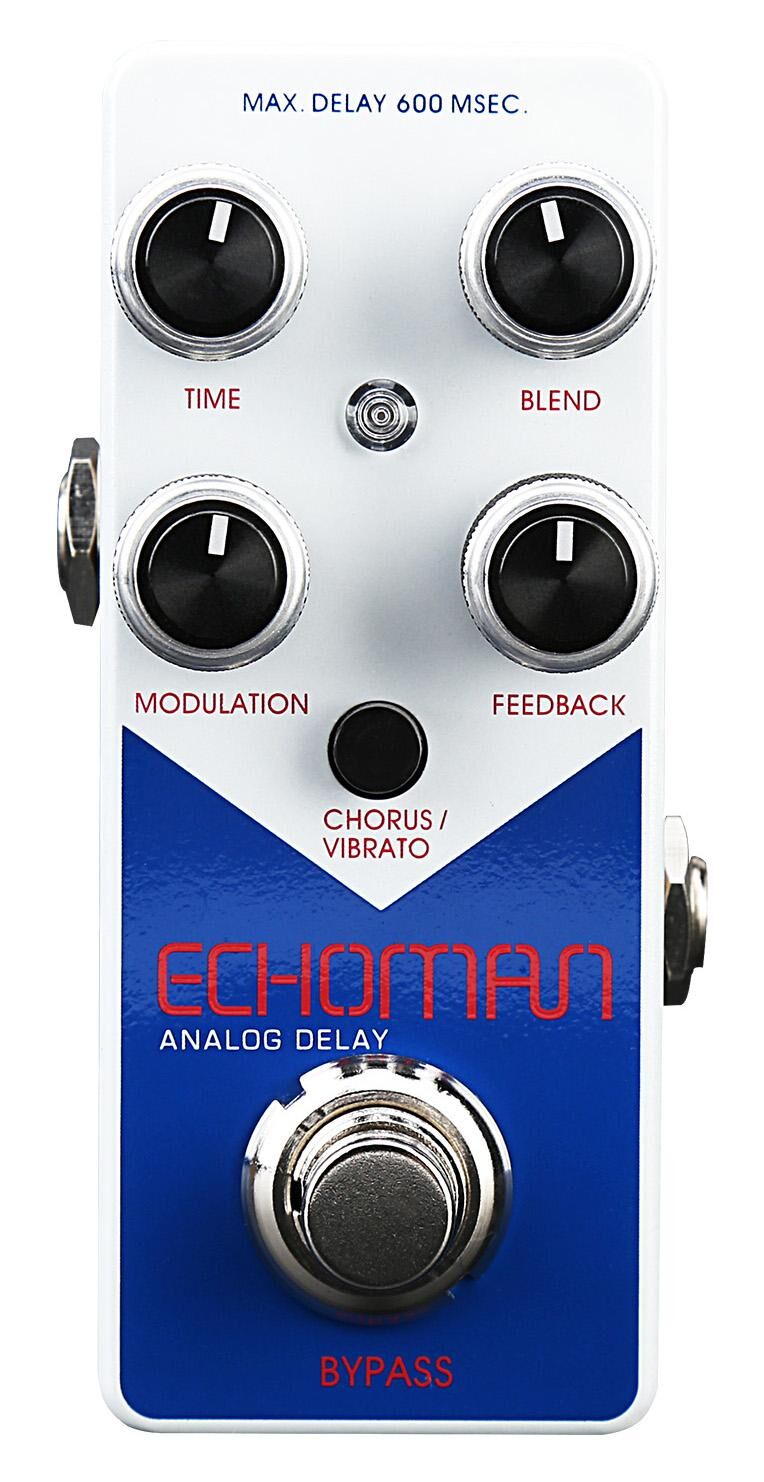

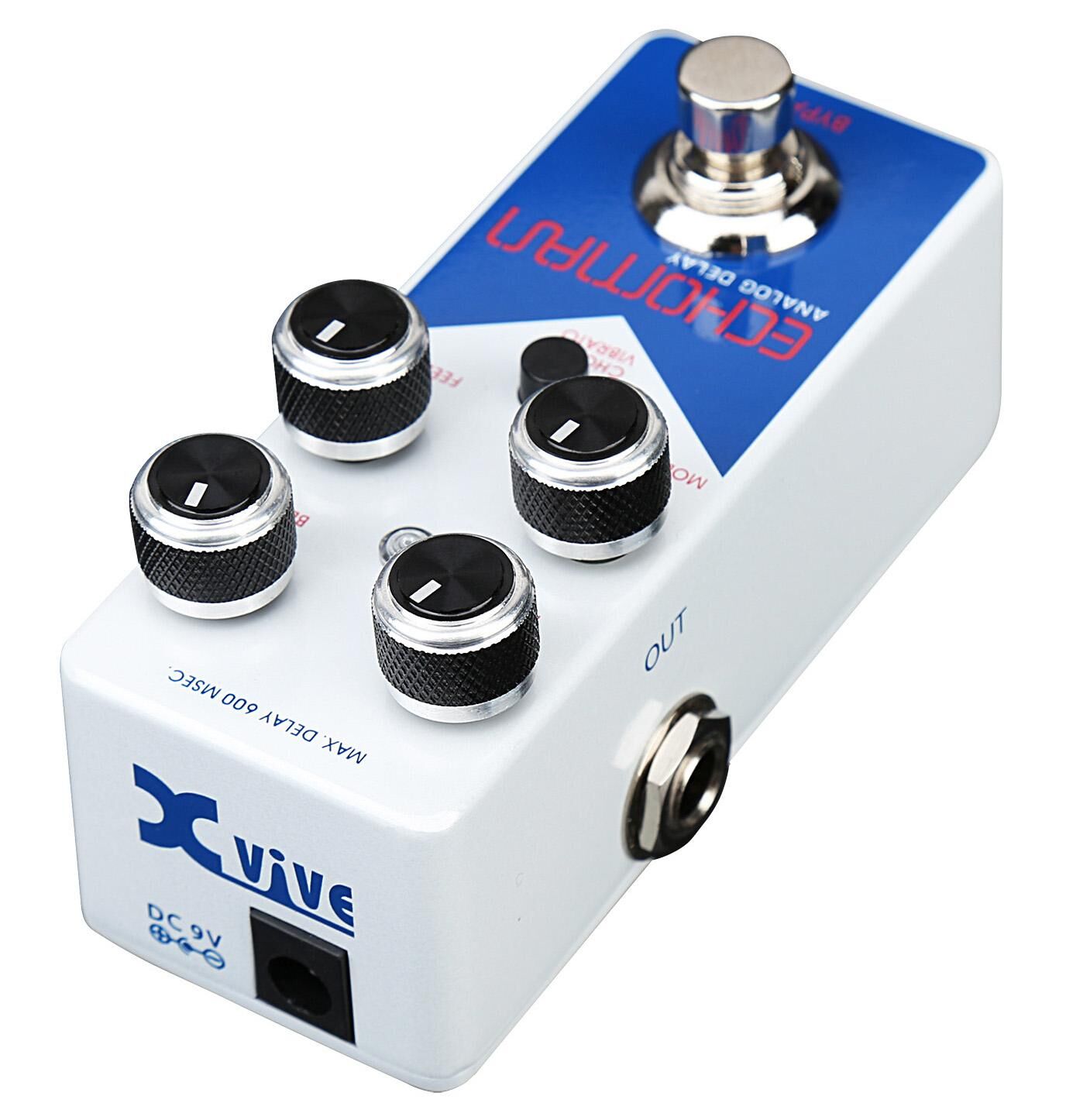

The XVive V21 Echoman, designed by guitar effects guru Howard Davis, is a simplified monaural version of the XVive W3 Memory Delay. It is a state-of-the-art design based on Davis’s highly successful Deluxe Memory Man, acknowledged as among the best - if not the best - analog delay pedals. The pedal features up to 600 ms of delay time with no aliasing distortion. Buffered bypass with a 900K input impedance guarantees no tone sucking (loss of highs) due to pickup loading. The wide bandwidth guarantees a good high frequency response even at long delay settings. The Feedback control allows self-oscillation if desired while Blend control allows adjusting the output from dry signal only to delayed signal only (100 % wet/dry mix). High-tech filtering and noise reduction circuitry guarantee an excellent signal to noise ratio, even at long delay settings.

  • delay effects pedal
  • analog operation
  • proprietary XVive chip design (MN 3005 BBD)
  • up to 600 ms delay time
  • true bypass
  • controls for Time, Blend, Feedback and Modulation
  • Chorus/Vibrato switch
  • bypass footswitch
  • status LED
  • metal housing
  • 6.3 mm mono in / output jacks
  • power supply via optional 9V DC adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
  • battery operation not supported
  • current draw 70 mA
  • dimensions (L x W x H) 95 x 45 x 45 mm
  • weight 250 g
