RockBoard IVC 200 Intelligent Voltage Converter, 200mA

RockBoard IVC 200 Intelligent Voltage Converter, 200mA

Delivery time: 3 days **

€19.90

plus shipping costs

This handy little gadget can be used to convert any DC input voltage between 9 V and 15 V to a... more

Close menu

RockBoard IVC 200 Intelligent Voltage Converter, 200mA

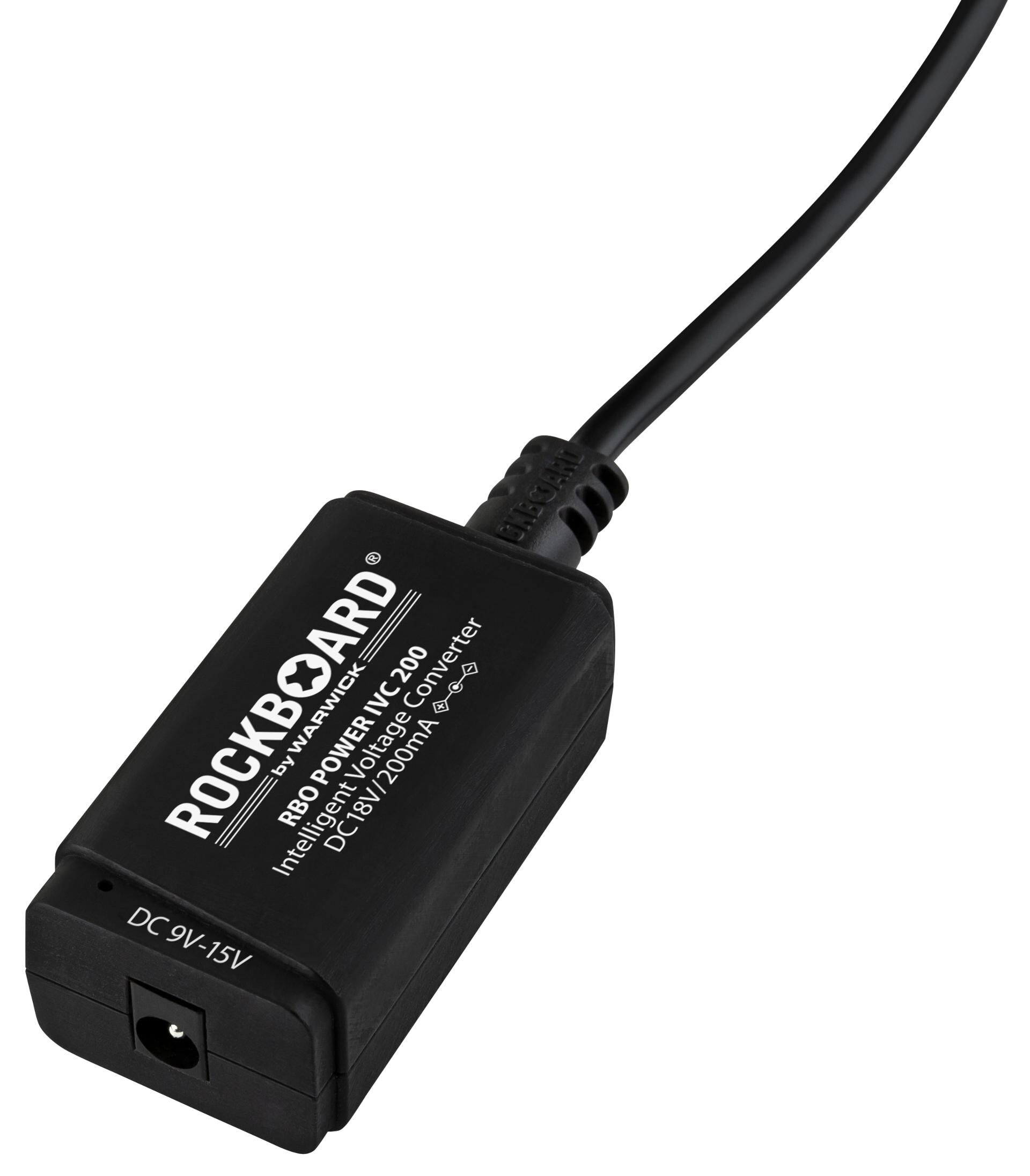

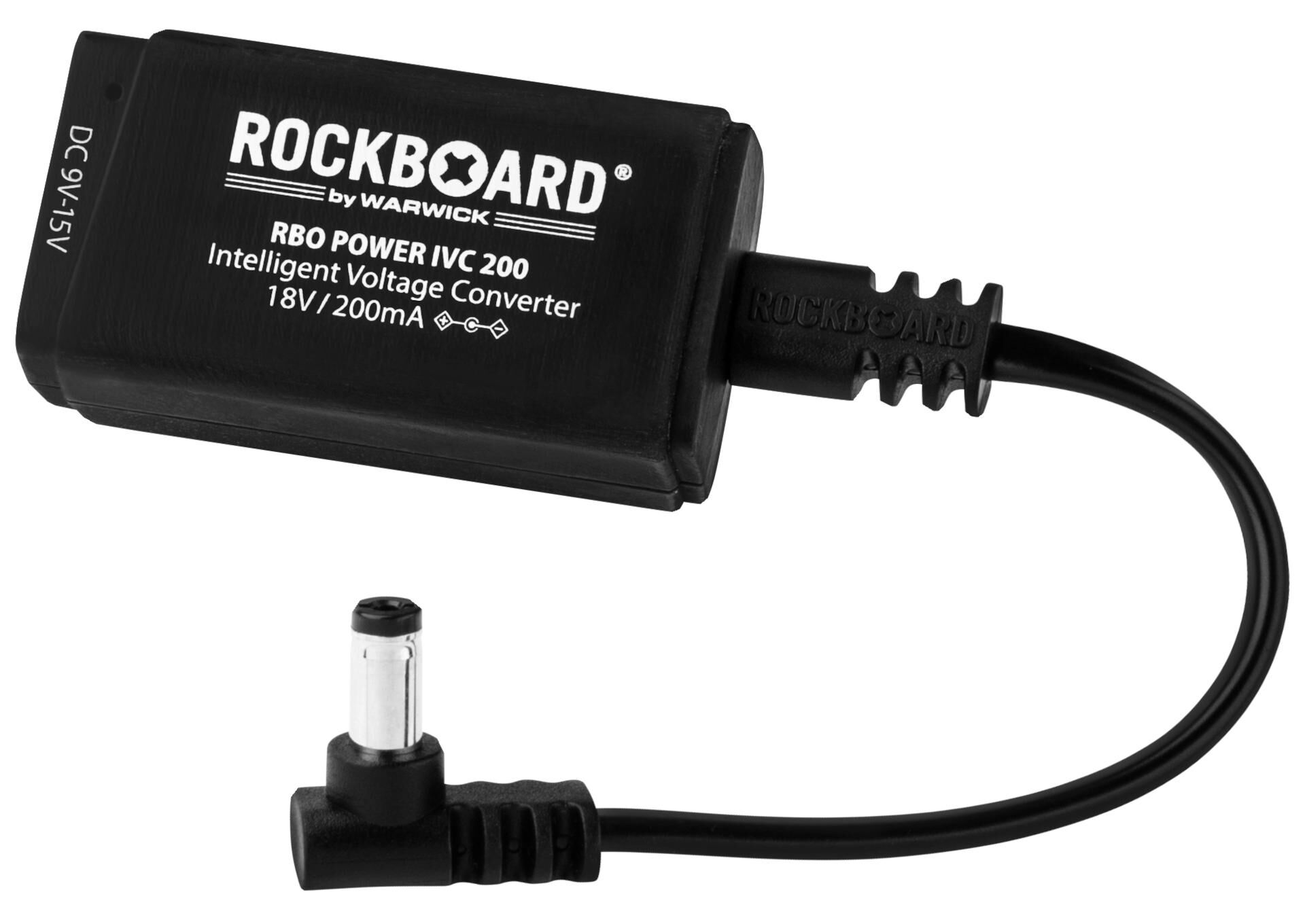

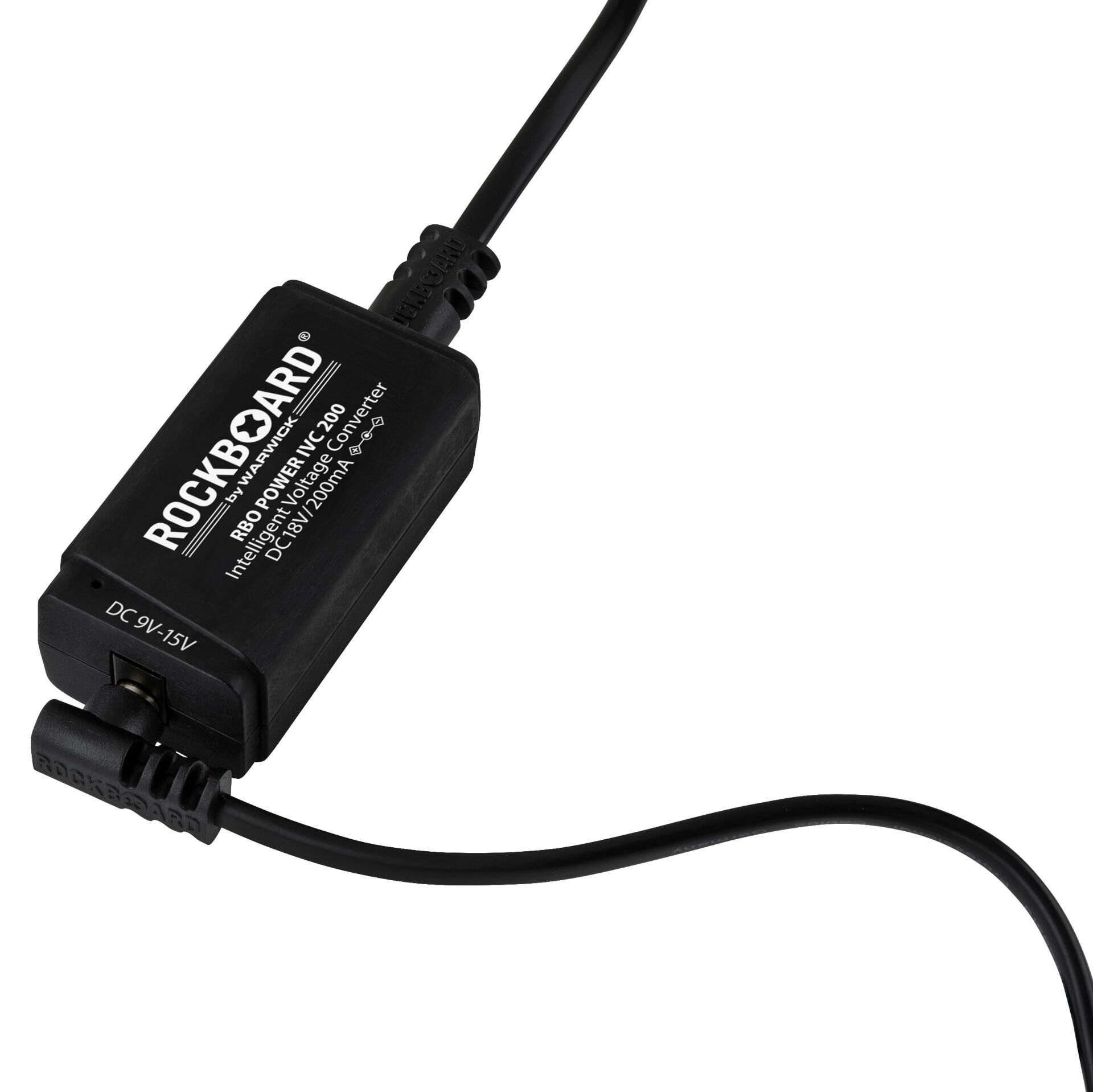

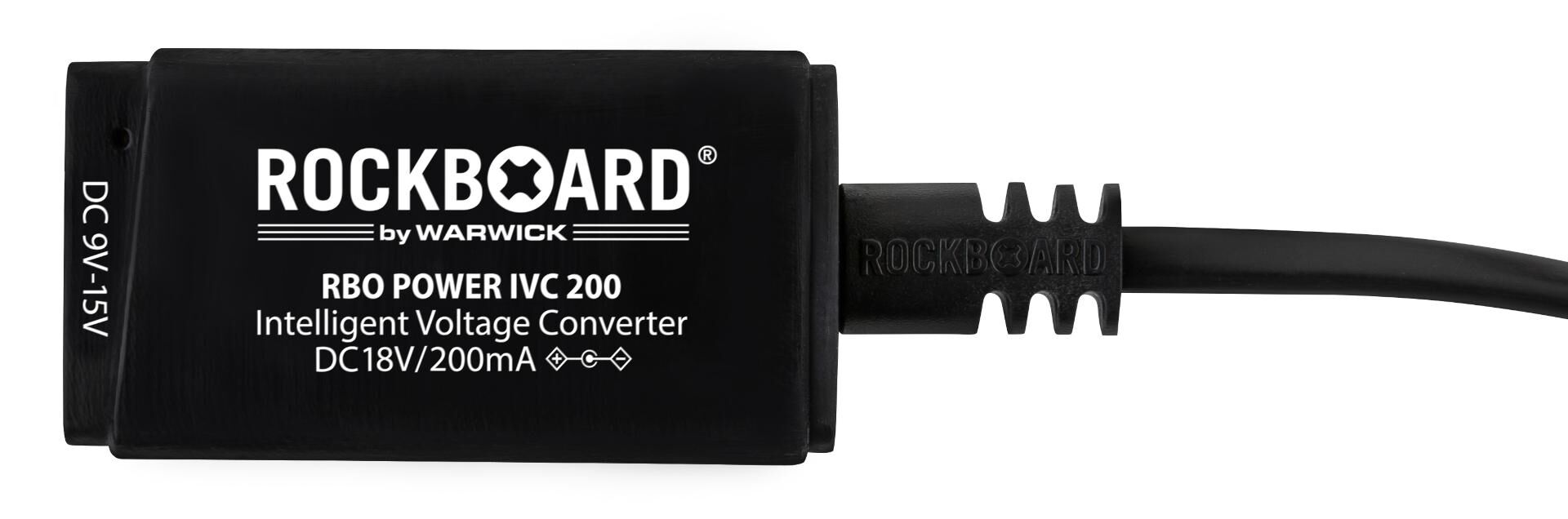

This handy little gadget can be used to convert any DC input voltage between 9 V and 15 V to a stable 18 V output voltage. Many analog boost / overdrive / distortion / fuzz pedals can be operated with up to 18 VDC to provide increased headroom. The intelligent circuitry of the POWER IVC 200 automatically detects the input voltage and converts it to 18 volts. It also provides short-circuit protection for the output. Due to its small size, you can stash the POWER IVC 200 under your pedalboard with hook-and-loop tape or cable ties.

voltage converter / DC-DC booster
boosts 9-15V input to 18V output
can be used with many analog OD/boost/distortion/fuzz pedals (check manufacturer’s specs)
input 9-15 VDC, 300-500 mA, 2.1 x 5.5 mm barrel jack, polarity (-) center
output 18 VDC, 200 mA, 2.1 x 5.5 mm barrel plug, polarity (-) center
dimensions (L x W x H) 55 x 30 x 22 mm / 2.2” x 1.2” x 0.9”
weight: 30 g / 1 oz.

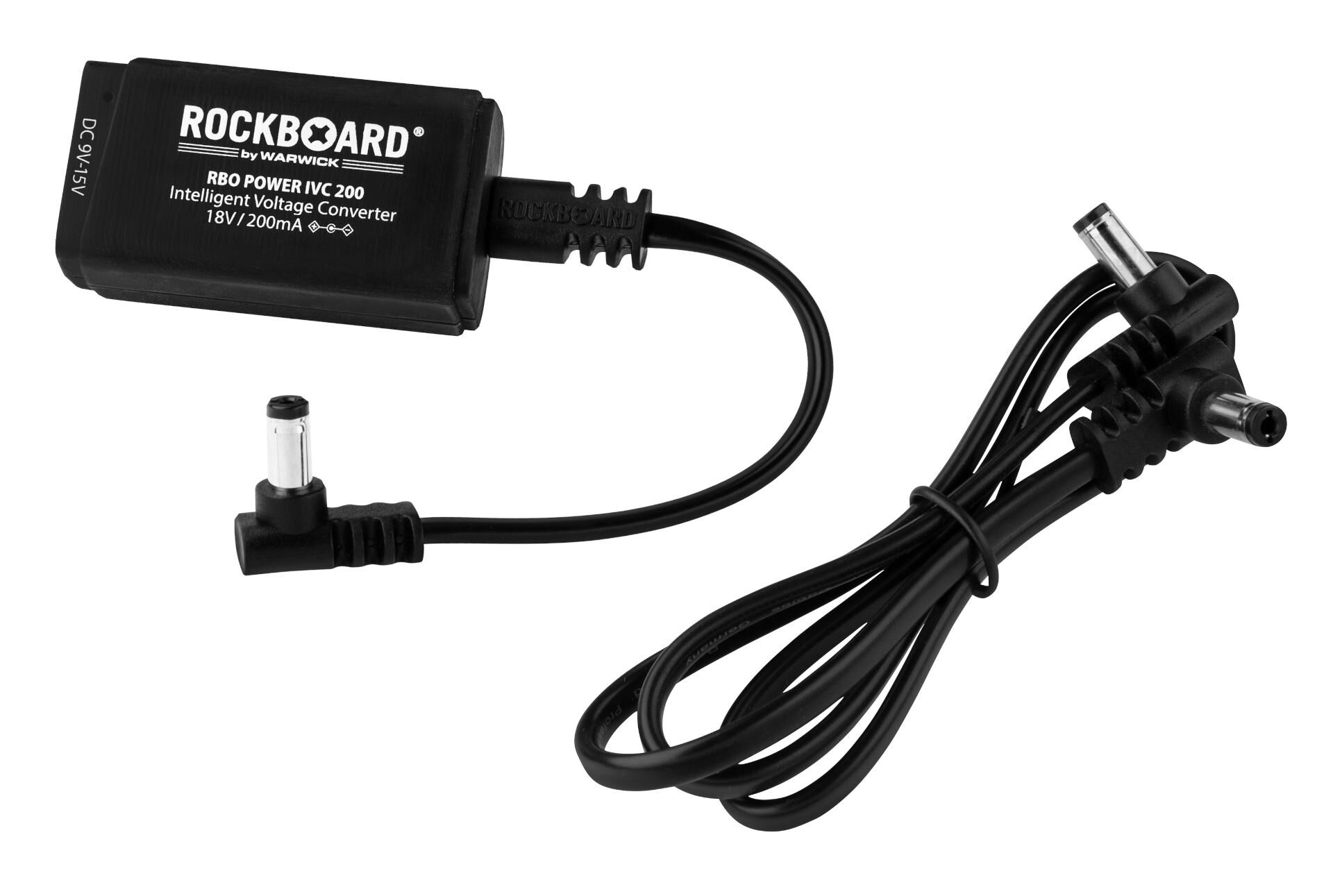

incl. 1 x power cable, 60 cm

Manual EN Manual DE Manual FR Manual NL Manual PL Manual CZ

Read, write and discuss reviews... more

Writing reviews is only possible for logged in users.
Log in now

Close menu

Manufacturer
Warwick GmbH & Co Music Equipment KG
Gewerbepark 46
08258
Markneukirchen
Deutschland
info@rockboard.de
https://www.rockboard.de

Importer
Warwick GmbH & Co Music Equipment KG
Gewerbepark 46
08258
Markneukirchen
Deutschland
https://www.warwick.de
info@warwick.de

General safety instructions
- Read the operating instructions carefully before using the power supply unit.
- Keep these instructions for future reference.
- Keep the power supply unit away from children and pets.
- Only use the power supply unit for its intended purpose.
- Protect the power supply unit from water, moisture and extreme temperatures.
- Avoid dropping the power supply unit or subjecting it to strong impacts.
- Only use the supplied accessories or components that have been approved by the manufacturer.

Electrical safety
- Only connect the power supply unit to a suitable, properly installed power socket.
- Ensure that the mains voltage matches the voltage specified on the power supply unit.
- Unplug the mains plug if the power supply unit is not to be used for a long period of time.
- Do not touch the mains adapter or the mains cable with wet hands.
- Avoid using the power supply unit near flammable materials or in potentially explosive atmospheres.

Repair instructions
- Do not attempt to open or repair the power supply unit yourself.
- Repairs may only be carried out by qualified specialists.
- Only use original spare parts to ensure the safety and functionality of the power supply unit.
- Unauthorised repairs or modifications can lead to serious injury or damage and invalidate any warranty claims.

Warnings
- Caution: The power supply unit can become hot during operation. Allow it to cool down before touching it.
- Warning: Do not use the power supply unit if the housing is damaged or the mains cable is worn.
- Caution: Do not expose the power supply unit to direct sunlight or other sources of heat.
- Danger: Keep the power supply unit away from water and other liquids to avoid the risk of electric shock.
