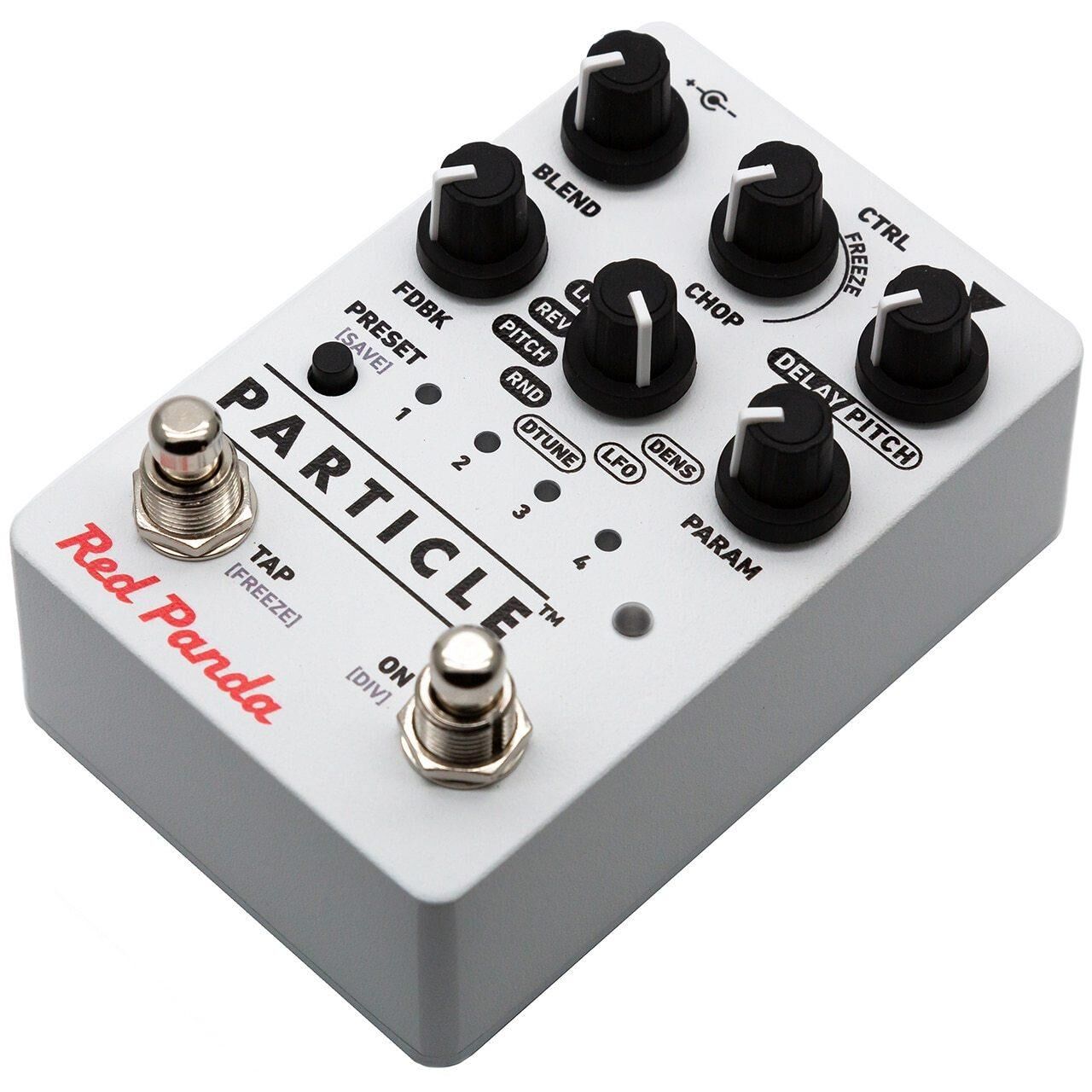

Red Panda Particle 2 - Granular Delay / Pitch Shifter

Product nr.: RPA PARTICLE V2

0,50 kg
Particle 2 is a granular delay / pitch shifting pedal. It chops your signal into small grains and... more
Red Panda Particle 2 - Granular Delay / Pitch Shifter
Particle 2 is a granular delay / pitch shifting pedal. It chops your signal into small grains and then rearranges, shifts, and mangles it, using the techniques of granular synthesis in real time. Results range from radical pitch and delay modulation to shimmering repeats to time stretching, stutter, and glitch sounds. It is a complete redesign of version 1, incorporating many improvements for live use and better sound quality. In the smaller enclosure 127 presets can be stored. Delay time has been extended to 2500 ms, at a higher sampling rate. Tap tempo allows delay time, LFO rate, grain size, and density adjustment with independent note divisions. The expression pedal is assignable to any combination of knobs, and Red Panda's separately available DIY-friendly Remote 4 switch allows foot control while the Particle sits at table height for knob tweaking. The eight modes can be combined to explore more granular synthesis territory, and MIDI (via USB) gives access to additional parameters.

  • digital delay / pitch shifting effects pedal
  • digital operation
  • uses granular synthesis for special delay effects and radical pitch shifting
  • from modulated delay, pitch shifting, shimmer delay, time stretching to stutter and glitch sounds
  • delay time 0 - 2,500 milliseconds
  • 3 pitch modes (Detune / Density / LFO)
  • 5 delay modes (Random / Density / LFO / Random Pitch / Reverse)
  • all 8 modes combinable
  • 100% wet/dry mix
  • 4 onboard presets
  • 127 MIDI presets
  • MIDI compatible via USB
  • freeze function
  • tap tempo functionality with beat divisions for each parameter (Chop / Density / LFO Rate / Delay Time)
  • expression control assignable to all parameters sumultaneously
  • true bypass

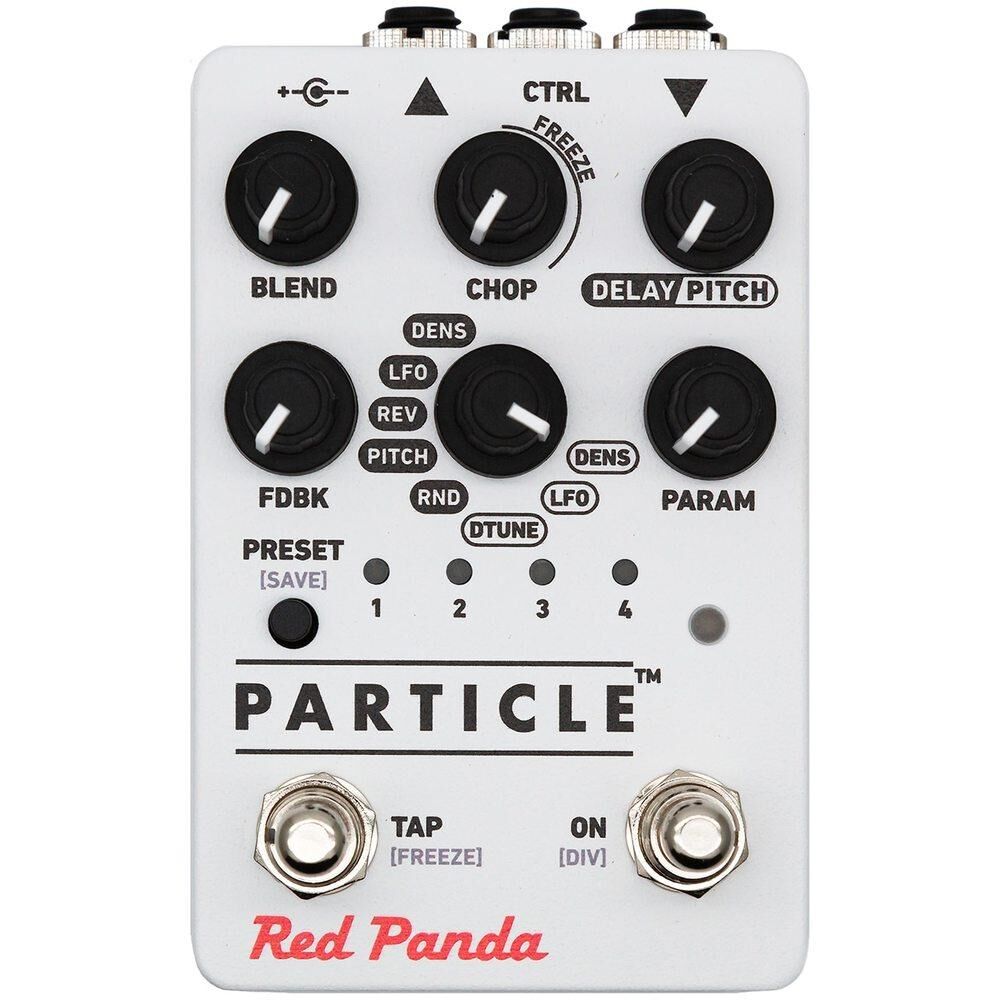

  • controls for Blend, Chop/Freeze, Delay/Pitch, Param and Fdbk
  • 8-way rotary switch for selecting Delay and Detune modes (Dens / LFO / REV / Pitch / RND / DTune / LFO, DENS)
  • Preset / Save control button
  • ON / DIV footswitch
  • TAP / Freeze footswitch
  • status LEDs
  • metal housing
  • 6.3 mm mono input/output jacks
  • 6.3 mm TRS EXP jack
  • mini USB port
  • power supply via optional 9V DC adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
  • battery operation not supported
  • current draw 250 mA
  • dimensions (W x D x H) 78 x 121 x 64 mm
  • made in USA
