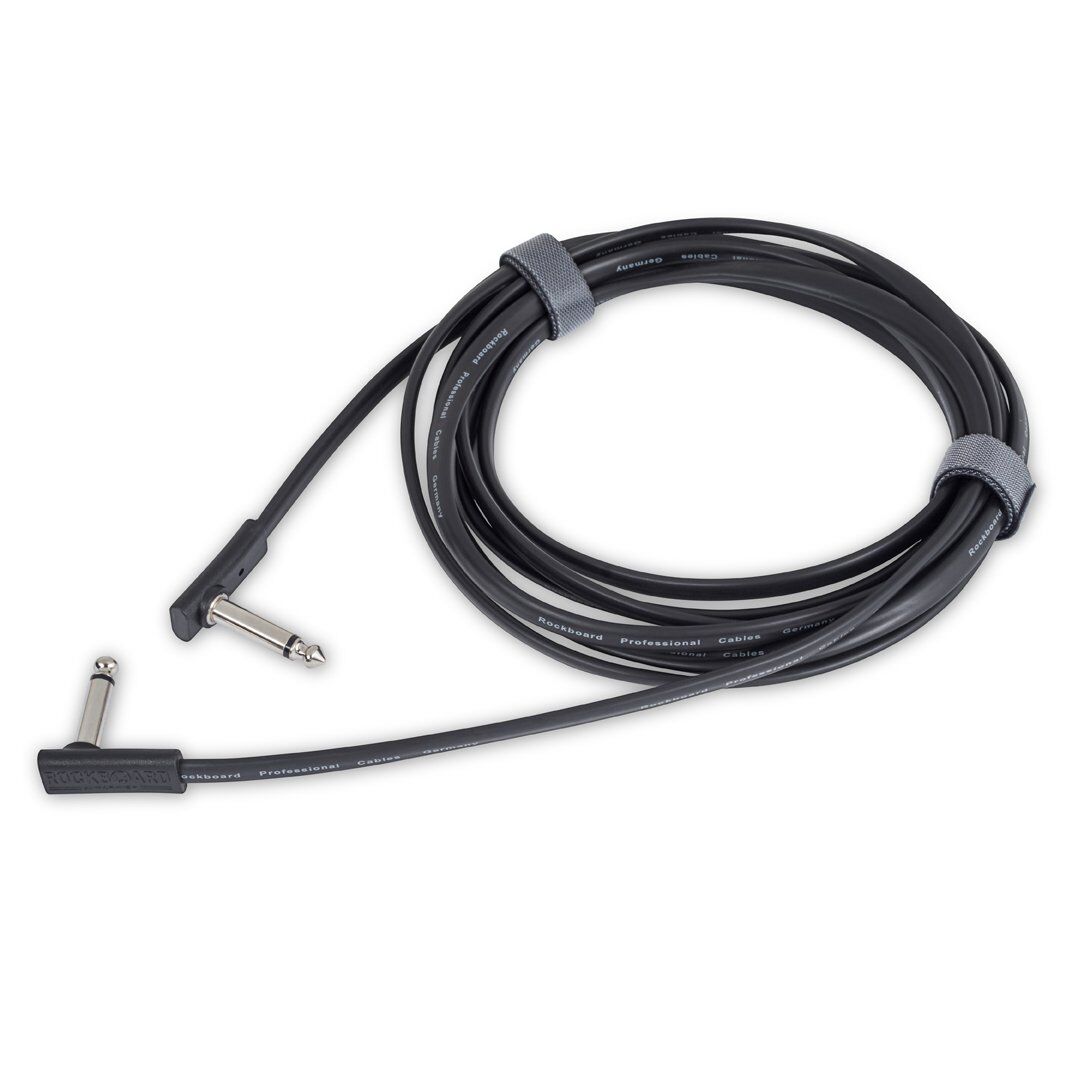

RockBoard Flat Instrument Cable, angled/angled, 300 cm / 118 7/64"
The RockBoard Flat Instrument Cable is extra flat and super-flexible. It features a slim rectangular body and extra thin angled plugs to prevent cable tangle as well as lead breakage. This guarantees a clean signal path and pristine signal quality. The RockBoard Flat Instrument Cable is available in six different configurations and two lengths.
flat instrument cable
super flat 6.3 mm mono audio plugs (angled/angled)
operating temperature -15° C to +70° C (5° F to 158° F)
flexible twisted copper shielding 34 x 0.12 mm
flexible copper conductor 20 x 0.12 mm
signal insulation PE (polyethylene)
outer PVC insulation
capacitance conductor/shield less than 10 pF/decimeter
conductor resistance less than 10 mOhm/decimeter
Outer dimensions cable 7 x 3 mm (9/32” x 1/8”)
Outer dimensions plug 12.5 x 7.5 mm (31/64” x 19/64”)
