Source Audio SA 270 - One Series EQ2 Programmable Equalizer

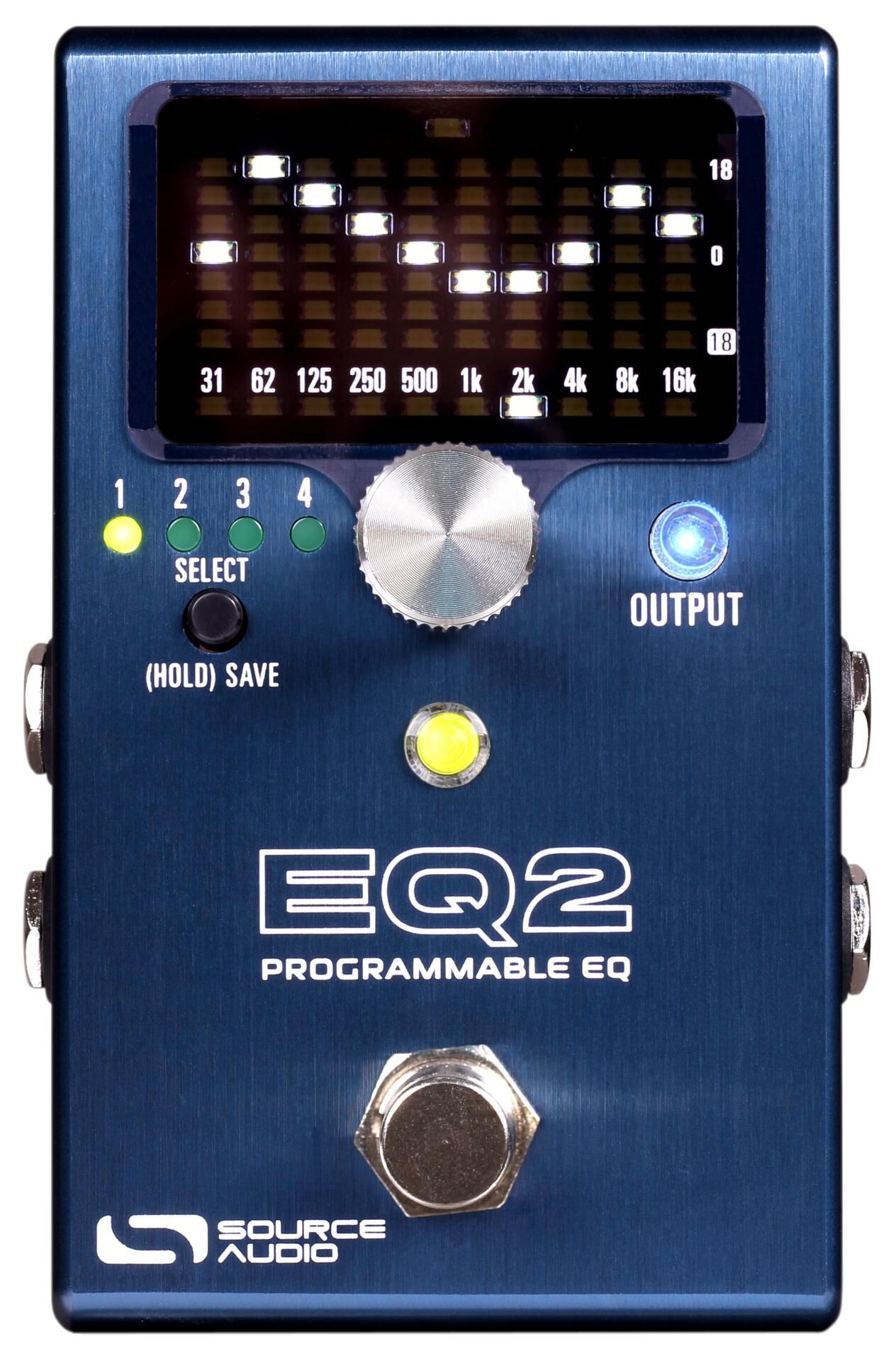

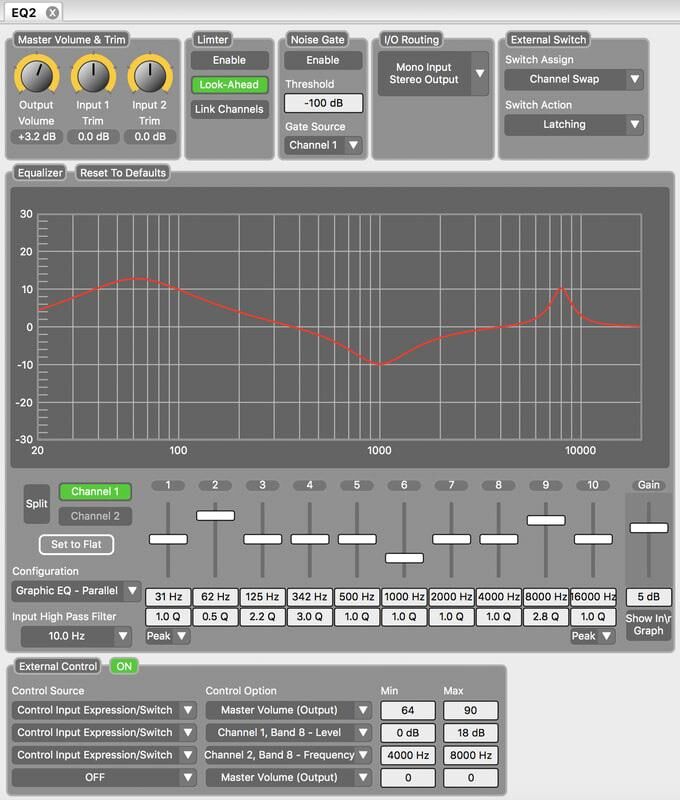

The Source Audio SA 270 One Series EQ2 Programmable Equalizer might be the most powerful and advanced equalizer pedal on the planet. This exceptional piece of gear builds off the legacy of its predecessor, the Source Audio Programmable EQ, a tremendously popular pedal that landed on the boards of numerous pro guitarists, including six-string icons David Gilmour and John Mayer. The updated EQ2 is a combination graphic and parametric equalizer with 10 fully adjustable frequency bands, stereo ins & outs, MIDI in and thru jacks, 4 or 8 onboard presets, 128 MIDI accessible presets, an additional +12 dB volume boost, a built in noise gate, limiter, and tuner, plus the ability to simultaneously run two discrete EQ presets (one for each stereo output). The controls on the face of the EQ2 Programmable Equalizer provide quick access to a deep set of tone-sculpting tools unmatched in traditional effects pedals, but connect your EQ2 to the free Neuro Desktop Editor and Mobile App (via the pedal's USB port) and access a beautifully laid-out set of controls ordinarily associated only with high-end rack gear. The Neuro Editor's sleek and user-friendly interface includes detailed parametric editing capabilities (Q factor and frequency shifting) for all 10 frequency bands, two-channel stereo options, noise gate and limiter controls, as well as detailed external expression control.

• 10-band equalizer effects pedal
• 10 adjustable frequency bands ranging from 31 Hz to 16 kHz with +/- 18 dB boost/cut for each band
• parametric equalization capabilities to adjust the frequency center point and Q factor
• 4 onboard presets (8 in Preset Extension Mode), 128 MIDI accessible presets
• additional, adjustable +12 dB clean boost
• full MIDI functionality
• external expression and switching control
• built-in noise gate
• built-in limiter
• built-in tuner
• controls for Output and control knob for EQ parameters
• Select/Save button
• status LEDs
• brushed anodized aluminum housing
• universal bypass, analog buffered or relay-based true bypass selectable

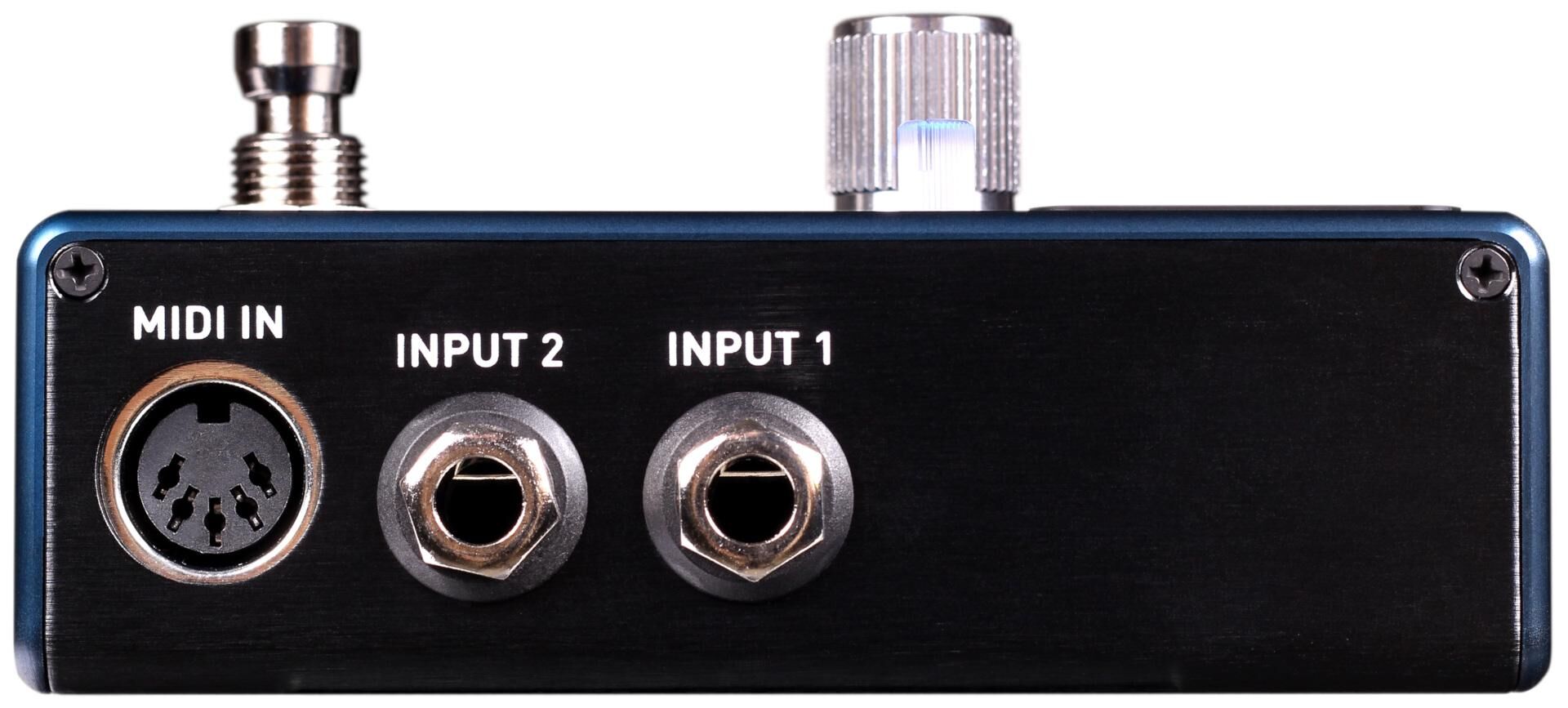

• 2x 6.3 mm TRS stereo Inputs

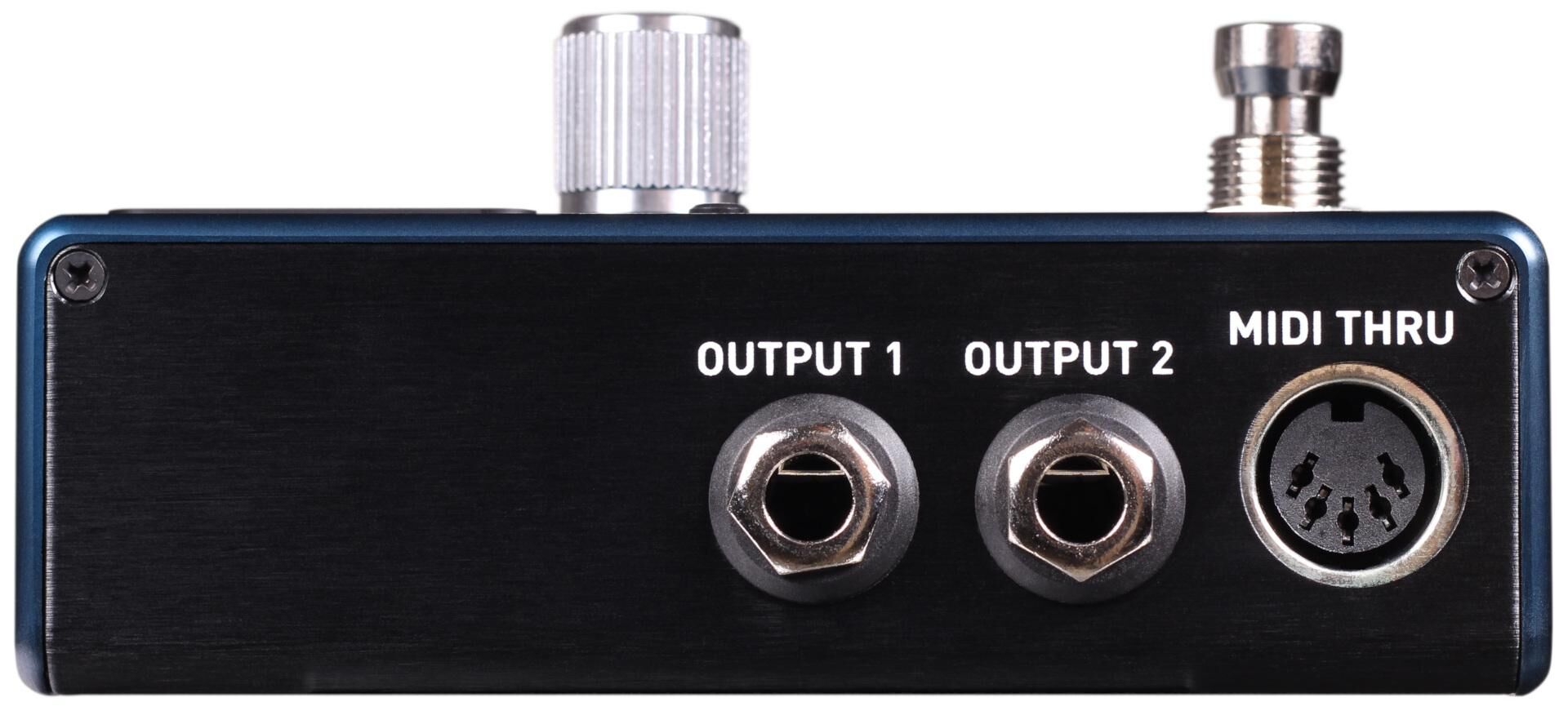

• 2x 6.3 mm TRS stereo Outputs
• MIDI IN and MIDI THRU connections

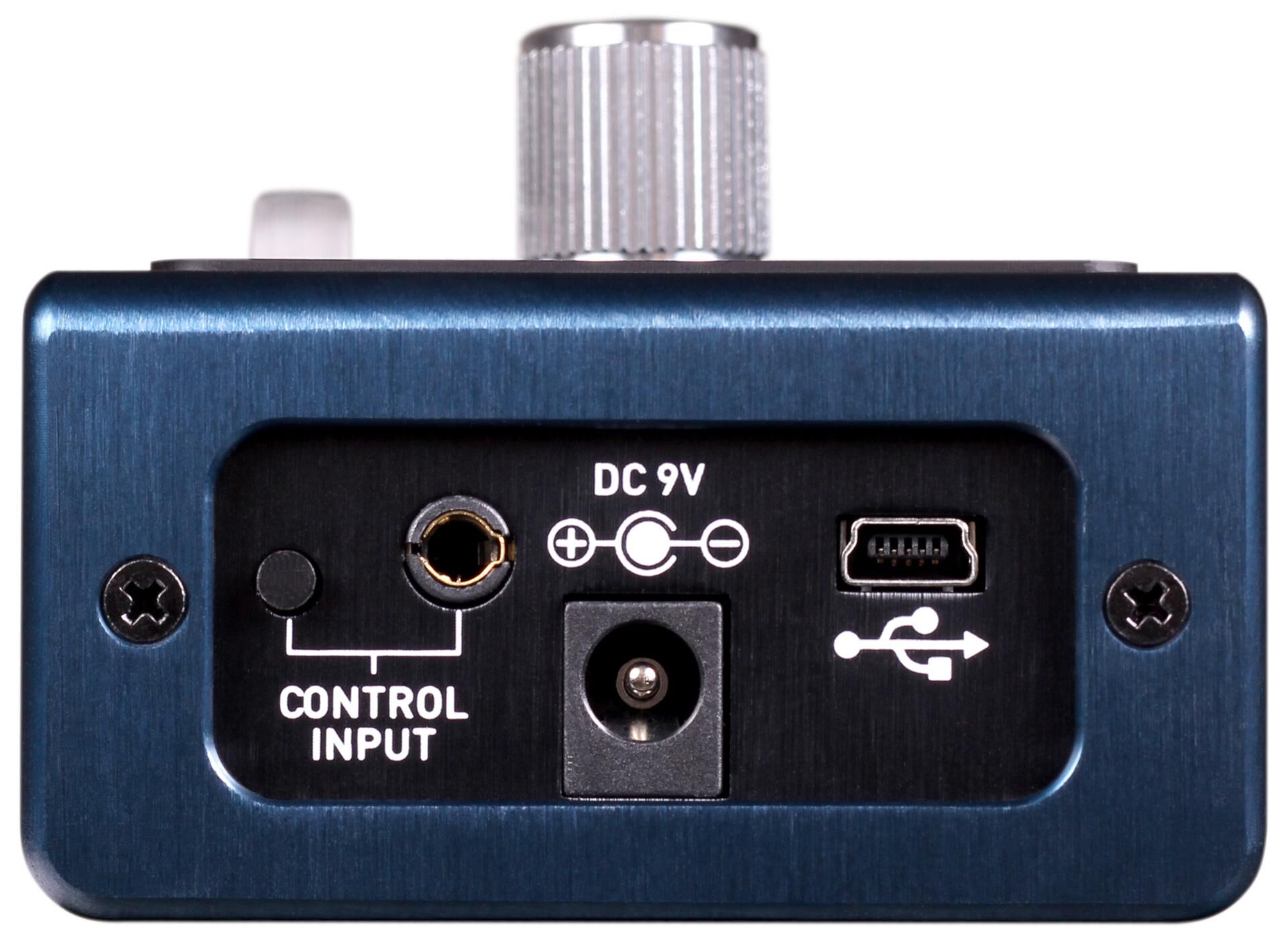

• Mini USB Port for PC connectivity (Windows and Mac compatible) and remote control
• 3.5 mm control input jack to connect with compatible Source Audio devices (Dual Expression Pedal, Tap Switch)
• power supply via included 9V DC (SR SA 153) adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
• current draw 165 mA
• battery operation not supported
• dimensions (L x B x H) 114 x 70 x 51 mm / 4.5" x 2.75" x 2"
