Sadowsky Parts - MetroLine & MasterBuilt complete VTC Electronic for Vintage MJ-Style Bass

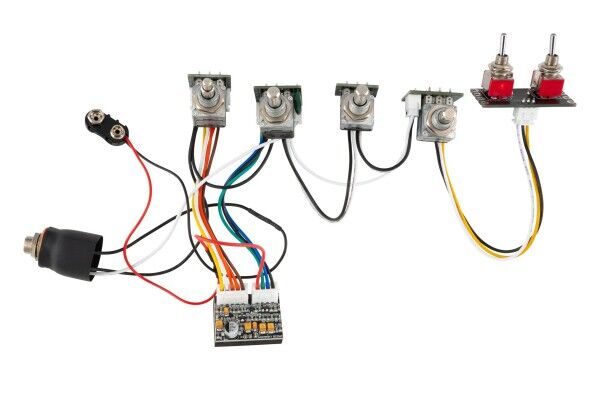

This Sadowsky pre-wired onboard bass preamp is suitable for Sadowsky MetroLine and MasterBuilt Vintage M/J-Style basses. It features active 2-way electronics (boost only) with RFIP (Radio Frequency Interference Protection) for passive pickups. The 4-knob layout has controls for master volume, balance, Vintage Tone Control (VTC), treble and bass (stacked) with a push/pull function for preamp bypass on the VTC knob. One 3-way toggle switch for M-Style pickup configuration (serial / parallel / single coil) and one 2-way toggle switch for J-Style pickup configuration (serial / single coil). The frequency range is 5 Hz to 50 kHz. The bass knob offers +18 dB boost at 40 Hz and the treble knob offers +18 dB boost at 4 kHz. Total harmonic distortion (THD) 0.18% at 1 kHz. Powered by a 9V battery that consumes 9 mA, the battery can last up to 870 hours. Input impedance is 1 mOhm, output impedance is 1 kOhm.

• pre-wired onboard bass preamp for MetroLine & MasterBuilt
• suitable for Vintage MJ-Style bass
• active 2-way Electronic (boost only) with RFIP (Radio Frequency Interference Protection) for passive pickups
• 4-knob layout with controls for master volume / balance / VTC tone control (p/p) / treble and bass (stacked)
• MEC potentiometer
• passive tone control on the Vintage Tone Control knob (VTC)
• push/pull function on the VTC knob for preamp bypass
• 1x 3-way toggle switch for M-Style pickup configuration (serial / parallel / single coil)
• 1x 2-way toggle switch for J-Style pickup configuration (serial / single coil)
• frequency range: 5 Hz - 50 kHz
• bass knob offers +18 dB boost at 40 Hz
• treble knob offers +18 dB boost at 4 kHz
• total harmonic distortion (THD) 0.18% at 1 kHz
• powered by a 9V battery
• power consumption: 9 mA
• battery life up to 870 hours
• input impedance: 1 mOhm
• output impedance: 1 kOhm
• Note: Defects or damage resulting from user error or improper installation resulting from the use of unsuitable accessories or tools are excluded from the guarantee. This includes any damage to the electronics or soldering points caused by the soldering iron being too hot and/or the use of incorrect soldering wire.
