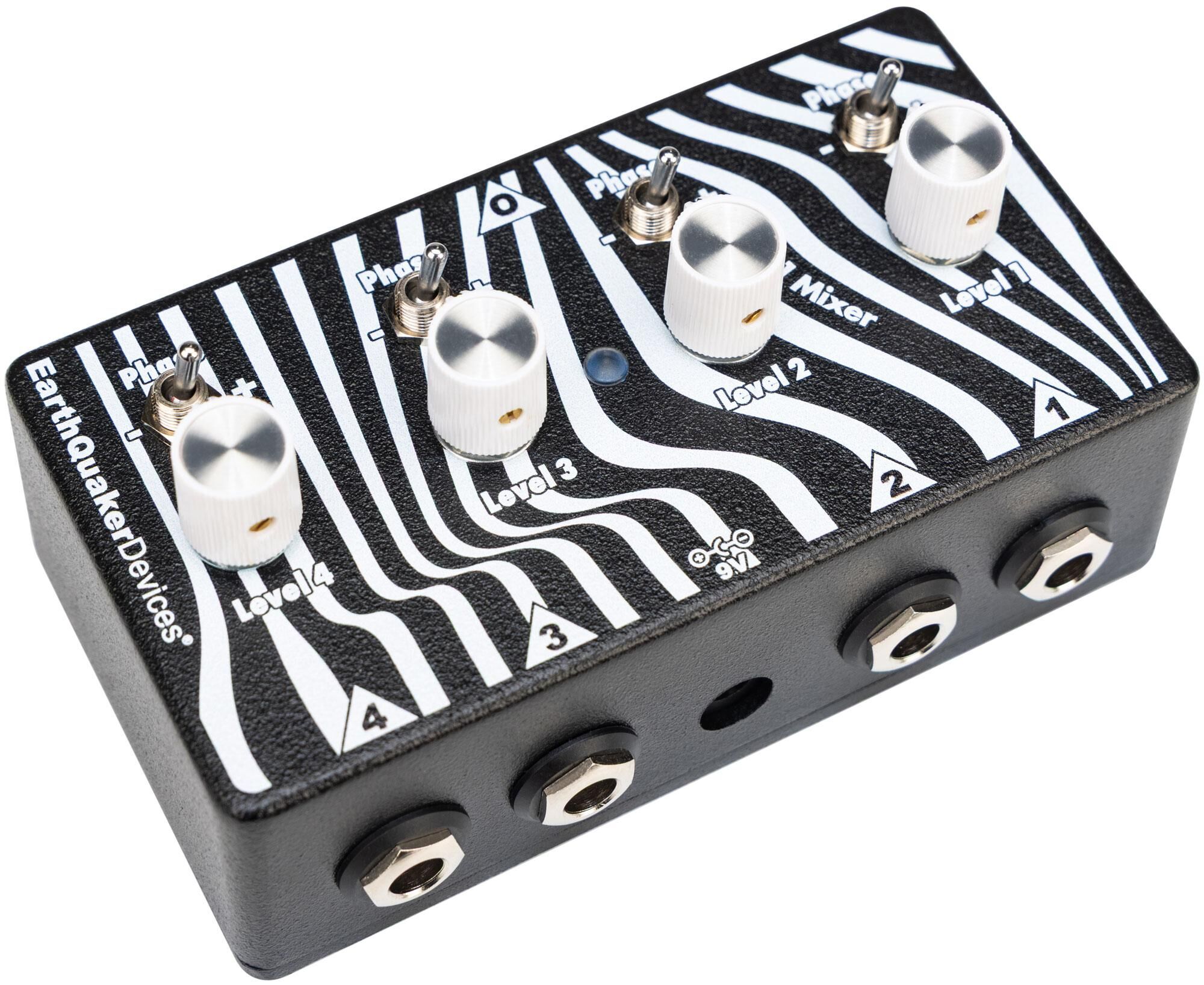

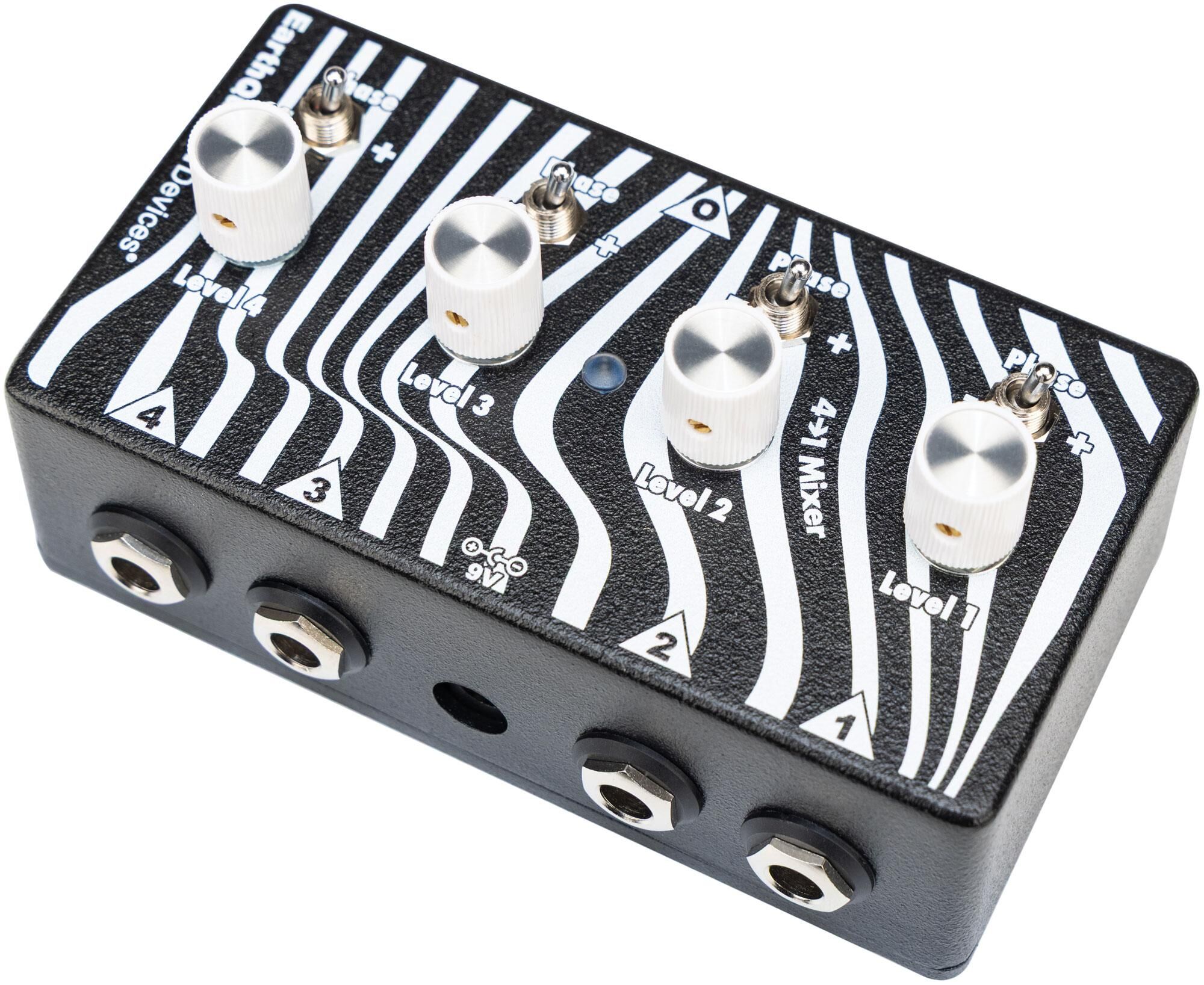

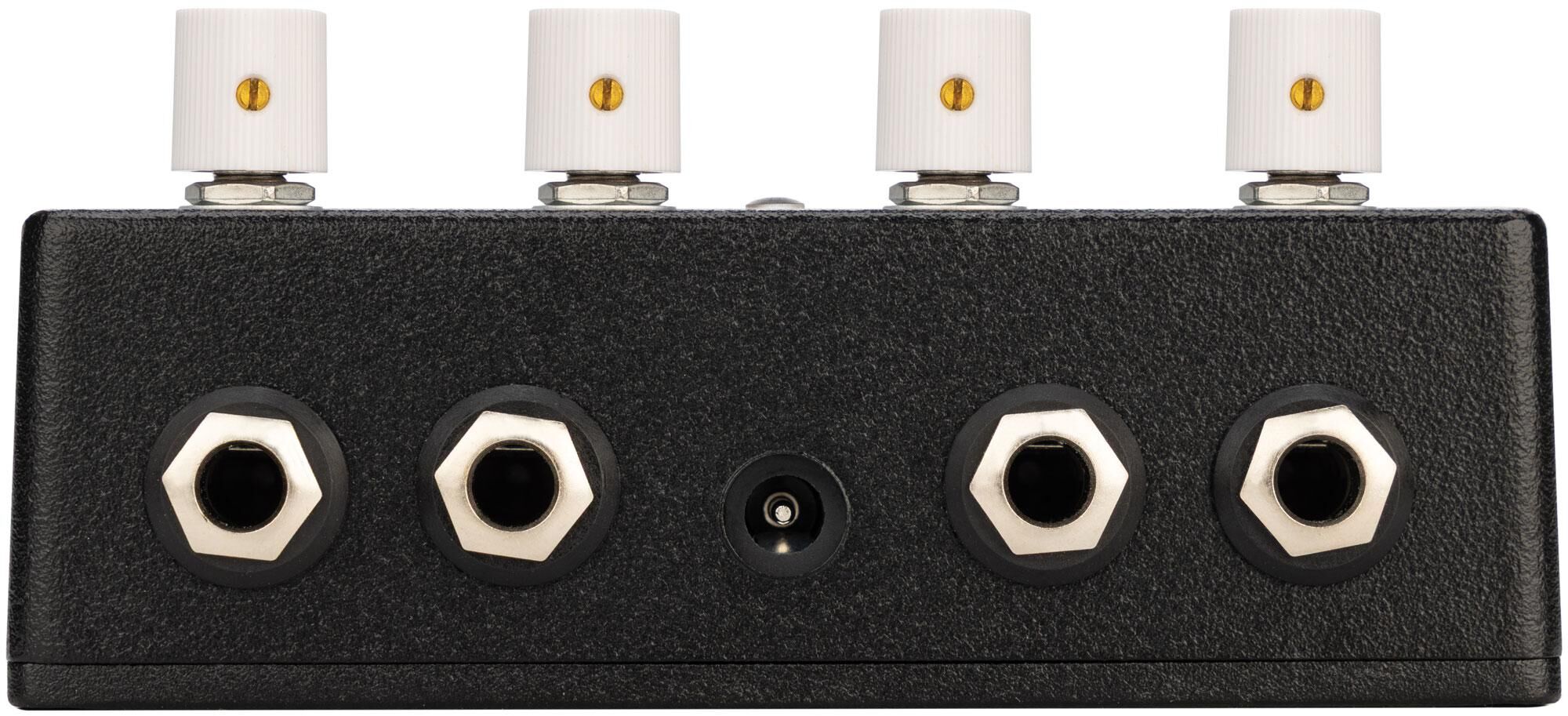

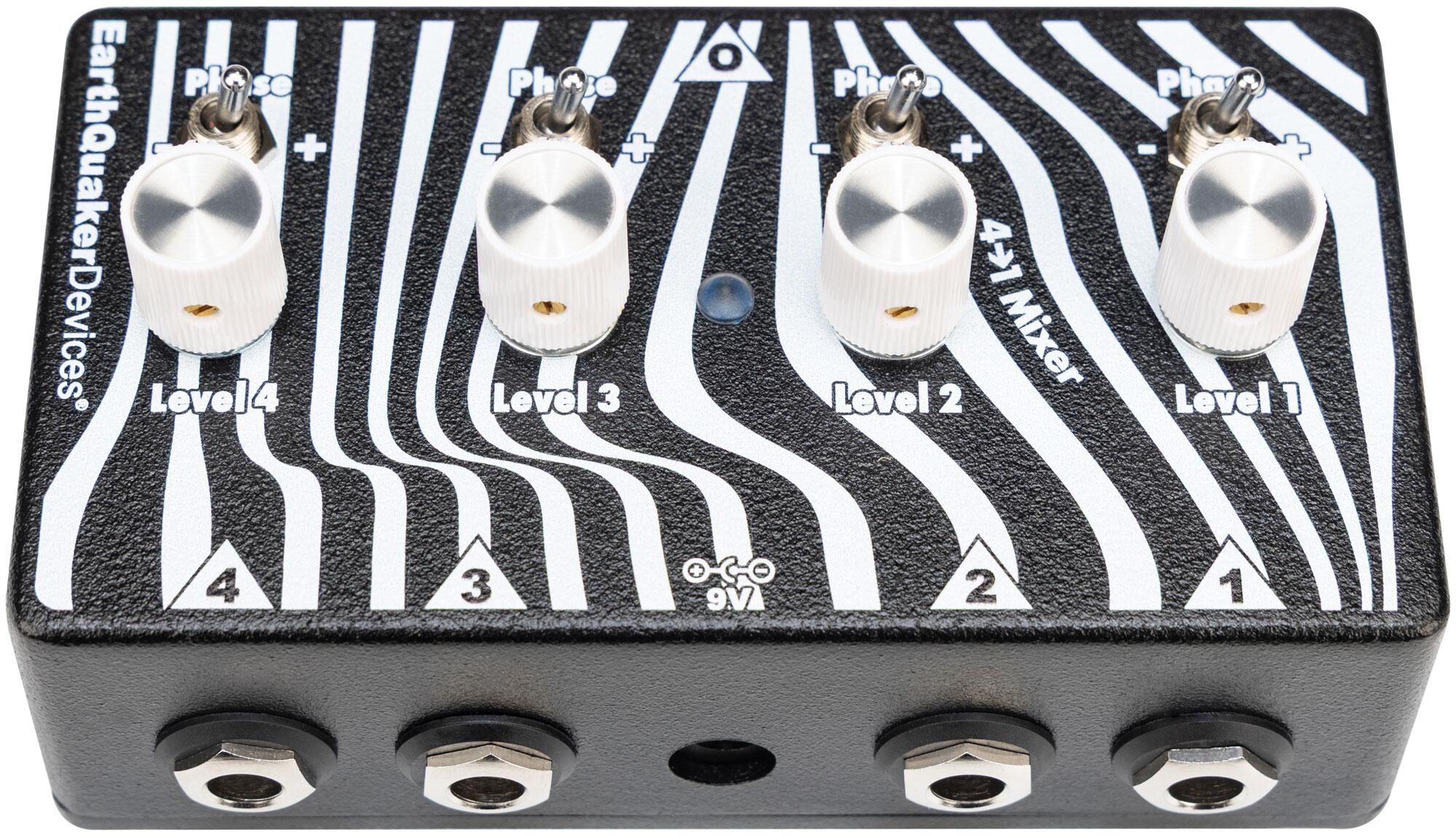

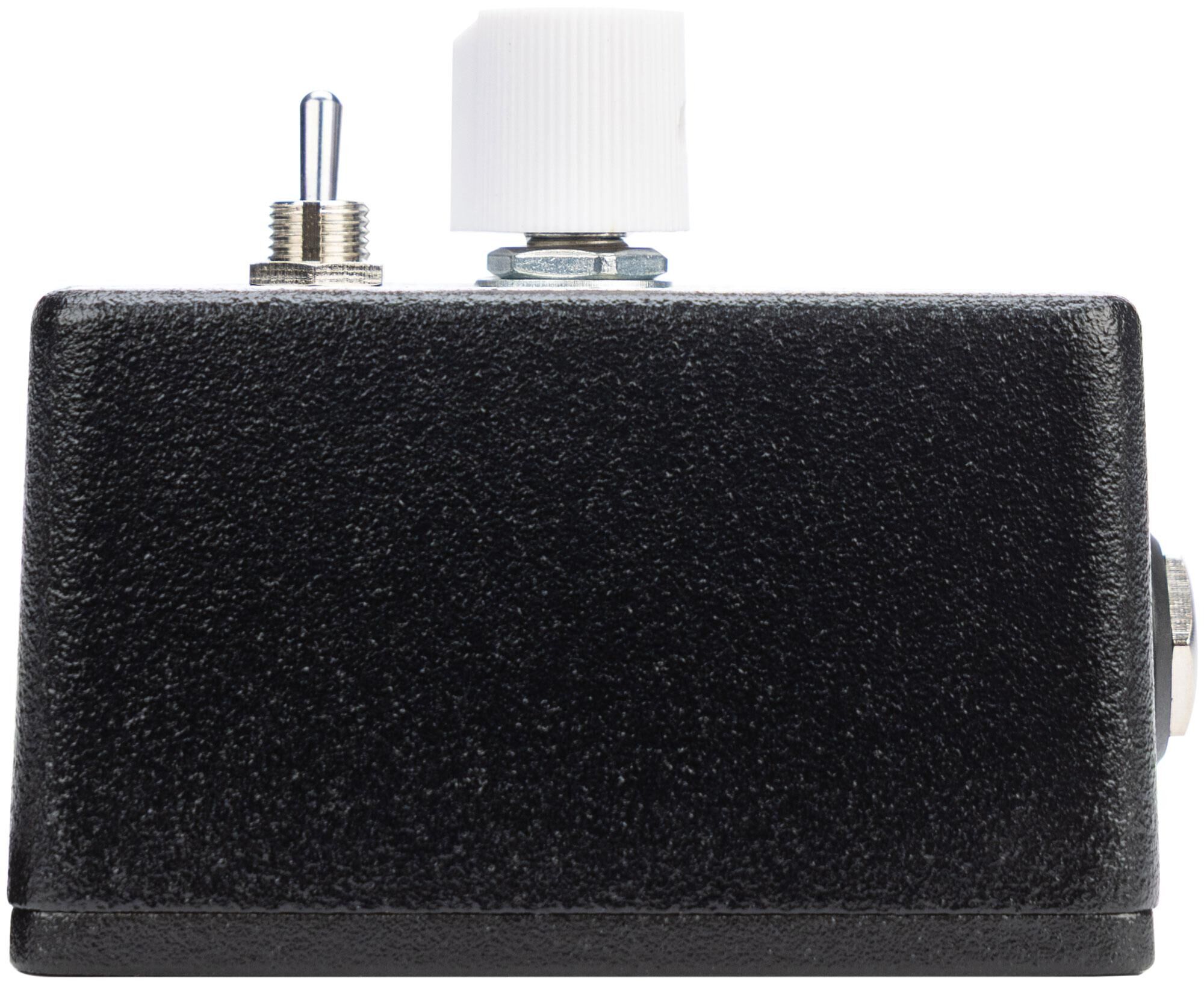

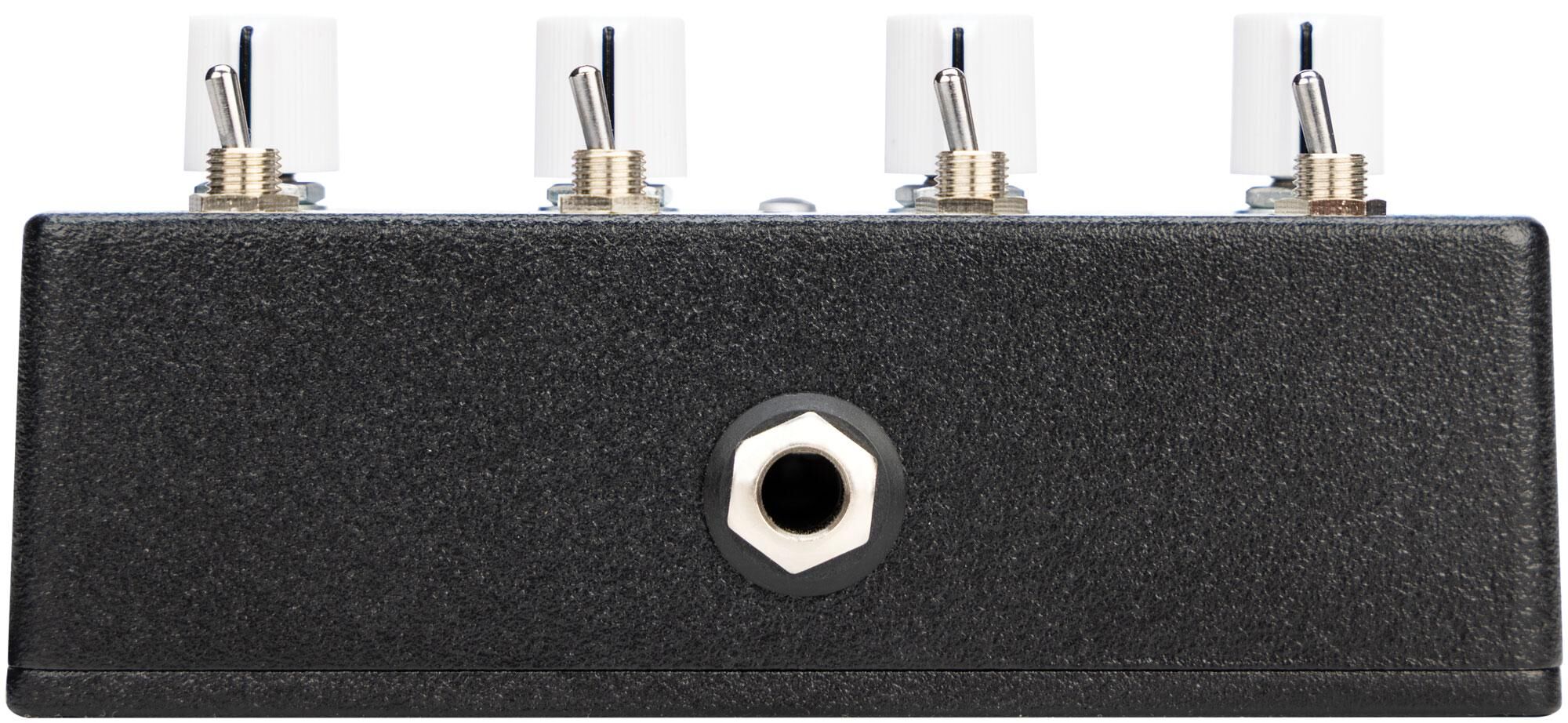

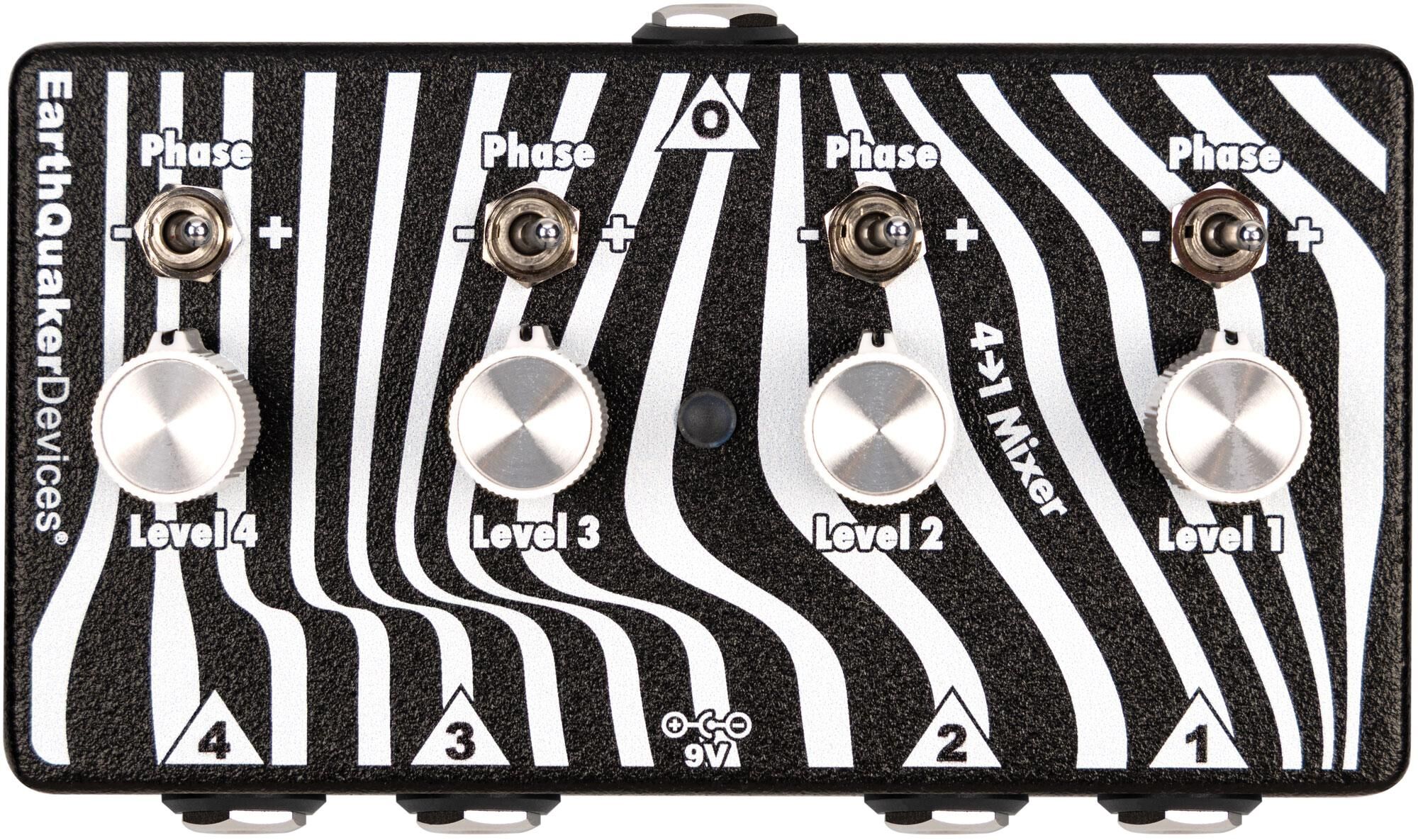

EarthQuaker Devices Four to One Mixer

Greetings sonic explorers! EarthQuaker Devices have created the Four to One Mixer as the final docking station for all of your diverging sonic journeys! The Four to One Mixer is a simple and compact 4 channel mixer with independent level controls and selectable phase for each channel. This was primarily designed to be used with the One to Four Splitter to create 4 parallel signal paths, but it can be used just about anywhere you need to mix four different sources into a single output with your unique sound! This high headroom device features a high 1 MOhm input impedance and a low 100 Ohm output impedance ensuring all signals maintain their sonic integrity throughout their journey, even on long cable runs. The high headroom input impedance of this device allows it to accept a variety of instruments without distortion or clipping. This was built to handle just about anything, including guitars, basses, synthesizers, drum machines, and more! Phase selector switches for each channel will correct any issues you might have from mixing multiple signals with opposing polarities. Sometimes mixes can sound out-of-phase, leaving the resulting signal sounding thin or tinnier. Adjusting the Phase on the Four to One Mixer will help you avoid these issues. When used in conjunction with the Four to One Splitter and the Flexi Loops™, you can create wild parallel signal paths at the flip of a switch! Use it to mix 4 instruments into one amp! Run four synths into a single channel! Put the whole band through your wall of amps! The possibilities are still nearly endless.

• compact four-channel mixer for stage and studio applications
• four separate high-performance amplifiers
• separate volume control for each input
• top sound quality at all volume levels
• high-quality components and robust construction with metal housing
• controls for level 1, level 2, level 3, level 4
• one phase switch per channel
• input impedance 1 MOhm
• output impedance 100 Ohm
• status LED
• metal housing
• 4x 6.3 mm mono jack input
• 6.3 mm mono jack output
• power supply via optional 9V DC adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
• battery operation not supported
• current draw 50 mA
• dimensions (L x W x H) 121 x 64 x 38 mm / 4.75" x 2.5" x 1.5"
• weight 300 g / 0.67 lbs
• hand made in USA
